Installing Front Hanger

Use Correct Mounting Cap Screws

To prevent damage to the clutch housing of 5000 Series Tractors, the correct cap screws must be used when installing the front hanger.

  • 5200, 5300, 5400 and 5500 Tractors: Most tractors require coarse thread (2.0 mm pitch) cap screws when installing the front hanger. On later production tractors, cap screw thread pitch must be verified. Verify thread pitch either by using a thread gauge to measure the threads in the holes of the clutch housing, or by installing M14 x 60 cap screw with 2.0 mm thread pitch by hand into clutch housing. If cap screw does not install easily into hole, see your authorized dealer for M14 x 65 cap screws with 1.5 mm thread pitch.

    Tractor Use Coarse Thread Cap Screws Verify Cap Screw Thread Pitch
    5200 Collar Shift Transmission (S/N -320896) (S/N 320897- )
    5200 TSS (S/N -320742) (S/N 320743- )
    5300 Collar Shift Transmission (S/N -331439) (S/N 331440- )
    5300 TSS (S/N -330986) (S/N 330987- )
    5400 Collar Shift Transmission (S/N -341447) (S/N 341448- )
    5400 TSS (S/N -341081) (S/N 341082- )
    5500 Tractors - All



  • 5210, 5310, 5410, and 5510 Tractors: Use M14 x 60 cap screws with 2.0 mm thread pitch.

OUO1043,0000209 -19-13DEC00-1/5

Install Front Hanger

NOTE: Cap screws will be tightened to specification during the frame alignment procedure.

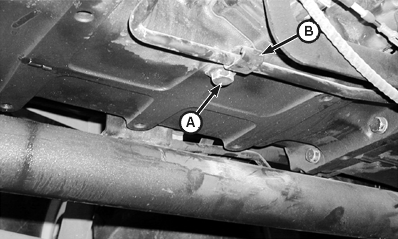

1. Remove cap screw (A) and oil line clamp (B).


A-Cap Screw
B-Oil Line Clamp

LV6719

OUO1043,0000209 -19-13DEC00-2/5

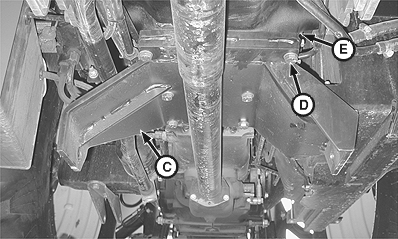

2. Install front hanger (C), washers and M14 x 60 cap screws (D) to tractor clutch housing (E). Ensure that the straight edge of the hanger faces the front of tractor. Snug bolts.


C-Front Hanger
D-M14 x 60 Cap Screw (6 used)
E-Tractor Clutch Housing

LV5812

OUO1043,0000209 -19-13DEC00-3/5

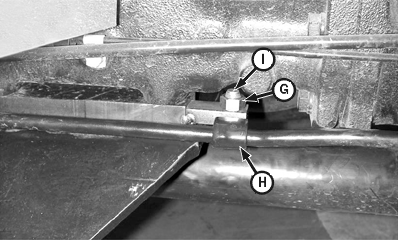

3. Install cap screw (F), oil line clamp (G), and nut (H) on front hanger.


F-M14 x 35 Cap Screw
G-Nut
H-Oil Line Clamp

LV6720

OUO1043,0000209 -19-13DEC00-4/5

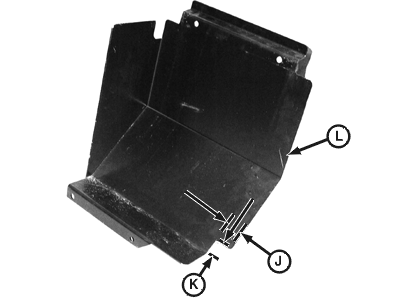

4. On cab tractors, remove cap screws, nuts and left front crop guard (I). Cut notch as shown to allow subframe to be installed without interference. Install cap screws, nuts and crop guard.


I-Tractor Left Crop Guard
J-Notch Width-3.2 cm (1.25 in.)
K-Distance Above Bend-2.5 cm (1 in.)

LV6721

OUO1043,0000209 -19-13DEC00-5/5
