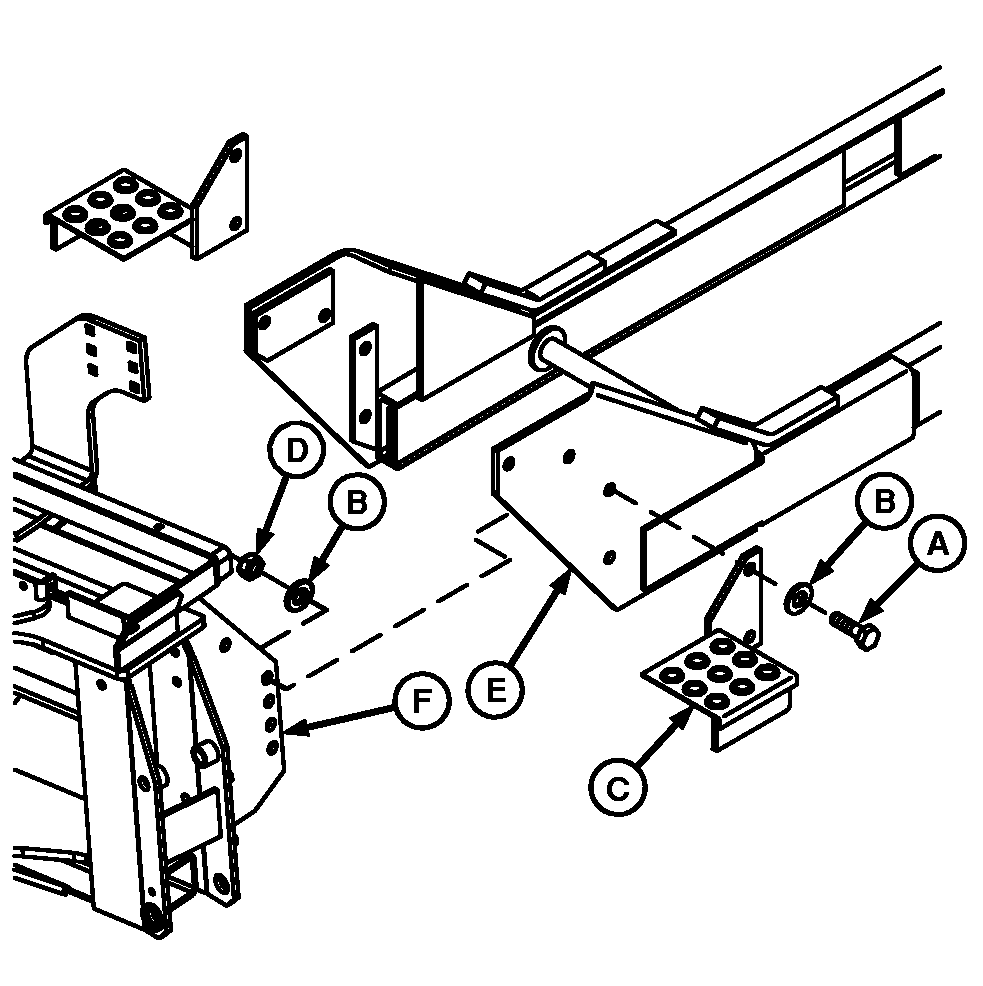

Installing Subframe to Mainframe

1. Support subframe (E) properly on dolly or other device. Align holes in subframe with holes in mainframe (F).

2. Install cap screws (A), steps (C), washers (B) and nuts (D). Tighten to specification.

Subframe and Mainframe - Specification

Cap Screw -Torque 142 N·m (105 lb-ft)


A-Cap Screw (8 used)
B-Washer (16 used)
C-Step (2 used)
D-Nut (8 used)
E-Subframe
F-Mainframe

LV5813

OUO1043,000020F -19-13DEC00-1/1
