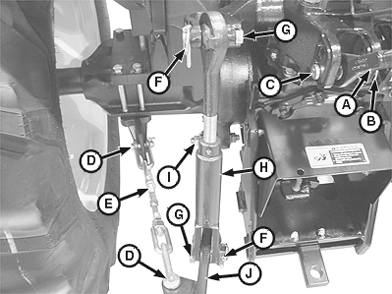

Removing 3-Point Hitch (5105, 5205 Tractors)

1. Remove hitch pin (B), center link pin (C) and center link (A).

2. Remove cotter pins, clevis pins (D) and sway chains (E).

3. Remove hitch pins (F), pins (G) and lift links (H). Lower draft link to ground.

4. Remove nut (I) and draft links (J).

5. Repeat Steps 2-4 on other side of 3-point hitch.


A-Center Link
B-Hitch Pin
C-Pin
D-Clevis Pin (4 used)
E-Sway Chain (2 used)
F-Hitch Pin (4 used)
G-Pin (4 used)
H-Lift Link (2 used)
I-Nut (2 used)
J-Draft Link (2 used)

LV5831

OUO1043,000021E -19-20DEC00-1/1
