Installing Front Hanger (5105, 5205 Tractors)

NOTE: Cap screws will be tightened to specification during the frame alignment procedure.

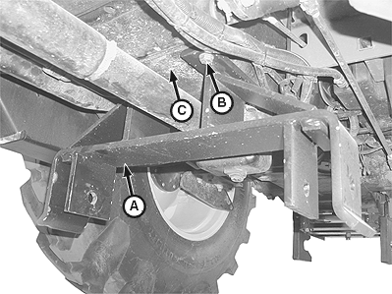

1. Install front hanger (A), washers and M12 x 35 cap screws (B) to tractor clutch housing (C). Snug cap screws.


A-Front Hanger
B-M12 x 35 Cap Screw (4 used)
C-Tractor Clutch Housing

LV5832

OUO1043,000021F -19-20DEC00-1/1
