Installing Rear Hanger (5105, 5205 Tractors)

1. Remove drawbar retaining pin (A) and drawbar (B).

NOTE: Rear hanger and drawbar support are heavy. Use a proper lifting device when removing.

2. Remove lower cap screws (C), upper cap screws (D), washers and drawbar support (E).

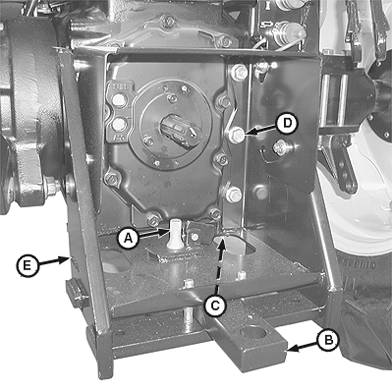

A-Drawbar Retaining Pin
B-Drawbar
C-Lower Cap Screw (4 used)
D-Upper Cap Screw (6 used)
E-Drawbar Support

LV5833

OUO1043,0000220 -19-20DEC00-1/3

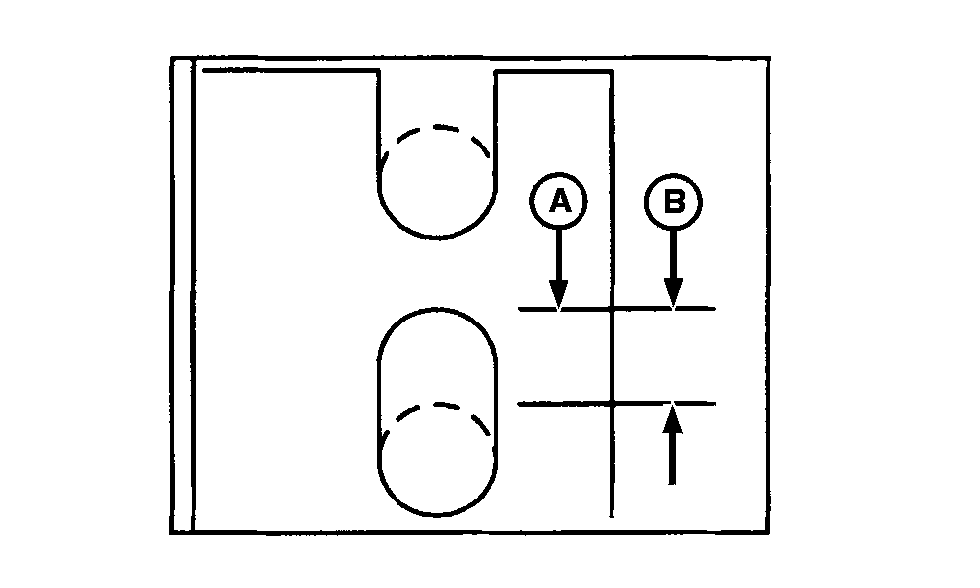

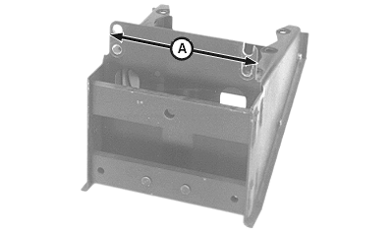

3. Measure and scribe a line 13 mm (1/2 in.) up from the top of round holes.

4. Slot the four holes.


A-Scribed Line
B-13 mm (1/2 in.) Distance

LV6020
LV6019

OUO1043,0000220 -19-20DEC00-2/3

NOTE: Rear hanger and drawbar support are heavy. Use a proper lifting device when installing.

5. Install rear hanger (A) and drawbar support (B).

a. Install rear hanger and drawbar support together, ensuring rear hanger is between tractor and drawbar support.

NOTE: Cap screws will be tightened to specification during the frame alignment procedure.

b. Install four M16 x 95 lower cap screws (C) and washers into bottom of drawbar support and rear hanger. Snug cap screws.

NOTE: Cap screws will be torqued to 310 N·m (229 lb-ft) in a later procedure. DO NOT OVERTIGHTEN. (See Aligning Frame in this section.)

c. Install six M14 x 45 upper cap screws (D) and washers. Snug cap screws.

LV6017

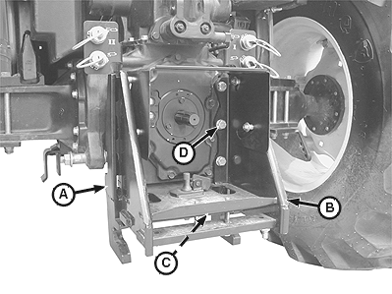

A-Rear Hanger
B-Drawbar Support
C-M16 x 95 Lower Cap Screw (4 used)
D-M14 x 45 Upper Cap Screw (6 used)

OUO1043,0000220 -19-20DEC00-3/3
