Installing Operator's Seat

1. The operator's seat plate (A) is installed onto the seat bracket (B) with the 1/2 x 6-1/2 in. cap screw and hex nut provided (C). Tighten cap screw until a slight drag is felt when pivoting seat bracket.

2. Install operator's seat by lining up four threaded holes in bottom of seat with holes in seat plate (A). Install four 5/16 x 3/4 in. cap screws and 5/16 in. lock washers (D). Seat can be installed into one of the four positions where holes line up.

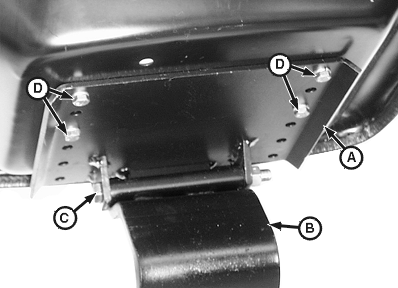

A-Seat Plate
B-Seat Bracket
C-1/2 x 6-1/2 in. Cap Screw and Hex Nut
D-5/16 x 3/4 in. Cap Screw and 5/16 in. Lock Washer (4 used)

LV5658

OUO1043,0000225 -19-20DEC00-1/1
