Connecting Hydraulic Hose (4300-4700 Tractors)

4300, 4400 Tractors

1. With engine off, and L-pins installed on backhoe, cycle rockshaft position control lever to relieve all pressure on rockshaft.

2. Disconnect Power Beyond pressure hose (A) from female quick-disconnect coupler (B) on Power Beyond manifold.

3. Remove dust cover (C) from return-to-tank male quick-disconnect coupler (D).

4. Connect backhoe hydraulic lines to tractor beyond quick-disconnect couplers as follows:

  • Backhoe female quick-disconnect coupler (return hose) to Power Beyond male quick-disconnect coupler (D) (return-to-tank).
  • Backhoe male quick-disconnect coupler (pressure hose) to Power Beyond female quick-disconnect coupler (B).
LV5587


A-Pressure Hose
B-Female Quick-Disconnect Coupler
C-Dust Cover
D-Male Quick-Disconnect Coupler

OUO1043,0000230 -19-20DEC00-1/4

5. Remove swing lock pin (A) and boom lock pin (B). Store pins on operator platform.

6. Start engine and run at slow idle.

7. From the operator's seat, bleed the system by doing the following:

  • Raise and lower stabilizers.
  • Raise and lower boom.
  • Extend and retract dipperstick.
  • Curl and dump bucket.
  • Swing boom from side to side.

8. Install swing lock pin and boom lock pin.

9. Stop engine.

IMPORTANT: Check tractor hydraulic fluid level. Add fluid if necessary.

10. Check tractor hydraulic fluid level. Add fluid if necessary. See tractor operator's manual.

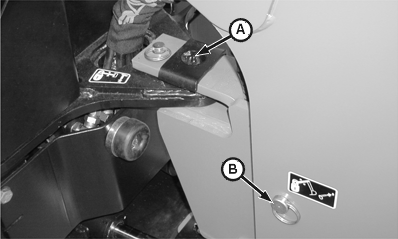

LV5827


A-Swing Lock Pin
B-Boom Lock Pin

OUO1043,0000230 -19-20DEC00-2/4

4500-4700 Tractors

1. With engine off, and L-pins installed on backhoe, cycle rockshaft position control lever to relieve all pressure on rockshaft.

2. Disconnect Power Beyond pressure hose (A) from female quick-disconnect coupler (B) on Power Beyond manifold.

3. Remove dust cover from return-to-tank male quick-disconnect coupler (D).

4. Connect backhoe hydraulic lines to tractor Power Beyond quick-disconnect couplers as follows:

  • Backhoe female quick-disconnect coupler (return hose) to Power Beyond male quick-disconnect coupler (D) (return-to-tank).
  • Backhoe male quick-disconnect coupler (pressure hose) to Power Beyond female quick-disconnect coupler (B).


A-Pressure Hose
B-Female Quick-Disconnect Coupler
D-Male Quick-Disconnect Coupler

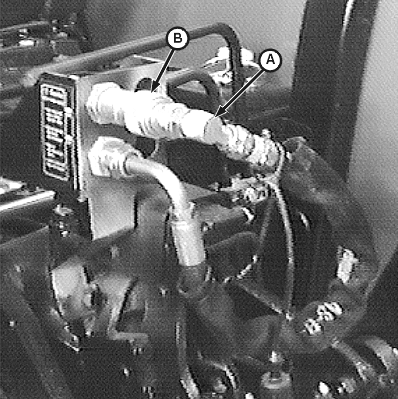

LV5588

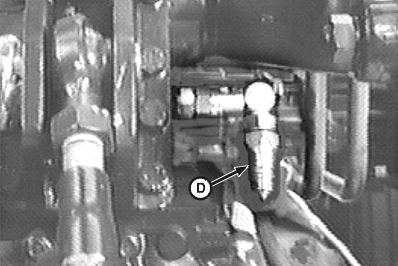

LV5589

OUO1043,0000230 -19-20DEC00-3/4

5. Remove swing lock pin (A) and boom lock pin (B). Store pins on operator platform.

6. Start engine and run at slow idle.

7. From the operator's seat, bleed the system by doing the following:

  • Raise and lower stabilizers.
  • Raise and lower boom.
  • Extend and retract dipperstick.
  • Curl and dump bucket.
  • Swing boom from side to side.

8. Install swing lock pin and boom lock pin.

9. Stop engine.

IMPORTANT: Check tractor hydraulic fluid level. Add fluid if necessary.

10. Check tractor hydraulic fluid level. Add fluid if necessary. See tractor operator's manual.

LV5827


A-Swing Lock Pin
B-Boom Lock Pin

OUO1043,0000230 -19-20DEC00-4/4
