OMM135891 E1: 47, 48, and 49 Backhoe for 4200—4700, 5105 and 5205, 5200—5500, 5210—5510 Tractors, Block File: OUO1043_0000238_19

Disconnecting Hydraulic Hoses (5105, 5205 Tractors)

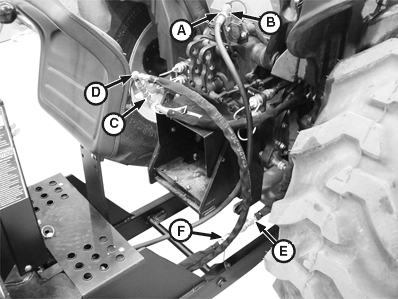

1. Disconnect backhoe female sump return hose quick-disconnect coupler (A) from tractor sump return male quick-disconnect coupler (B).

2. Disconnect tractor pressure hose female quick-disconnect coupler (C) from backhoe pressure hose male quick-disconnect coupler (D).

3. Disconnect tractor pressure return hose male quick-disconnect coupler (E) from backhoe pressure return hose female quick-disconnect coupler (F).

IMPORTANT: To prevent tractor hydraulic system damage, pressure hose and pressure return hose MUST be connected together, when backhoe is detached.

4. Connect tractor pressure hose to tractor pressure return hose.

5. Connect backhoe pressure hose male quick-disconnect coupler (D) to backhoe pressure return hose female quick-disconnect coupler (F).

6. Install dust caps and plugs on remaining quick-disconnect couplers.

A-Backhoe Sump Return Hose Female Quick-Disconnect Coupler
B-Tractor Sump Return Male Quick-Disconnect Coupler
C-Tractor Pressure Hose Female Quick-Disconnect Coupler
D-Backhoe Pressure Hose Male Quick-Disconnect Coupler
E-Tractor Pressure Return Hose Male Quick-Disconnect Coupler
F-Backhoe Pressure Return Hose Female Quick-Disconnect Coupler

OUO1043,0000238 -19-21DEC00-1/1
