Disconnecting Hydraulic Hoses (4300-4700 Tractors)

causym CAUTION: BEFORE REMOVING HYDRAULIC HOSES, BE SURE BOOM LOCK PIN AND SWING LOCK PIN HAVE BEEN INSTALLED. CYCLE BOOM CONTROL LEVER TO RELIEVE BACKHOE SYSTEM PRESSURE BEFORE ATTEMPTING TO REMOVE QUICK DISCONNECT COUPLERS.

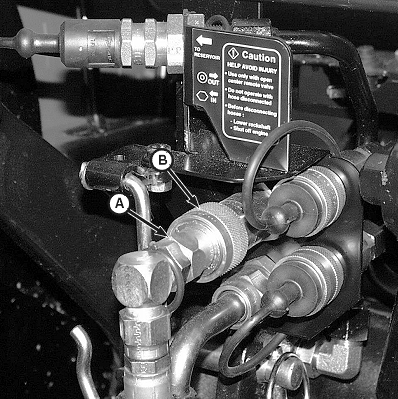

4300, 4400 Tractors

1. Disconnect backhoe hydraulic pressure and return hoses from tractor power beyond quick-disconnect couplers.

2. Connect male quick-disconnect coupler on tractor pressure hose (A), to female quick-disconnect coupler on rockshaft input port (B).

A-Pressure Hose
B-Rockshaft Input Port

OUO1085,00002A0 -19-16NOV00-1/2

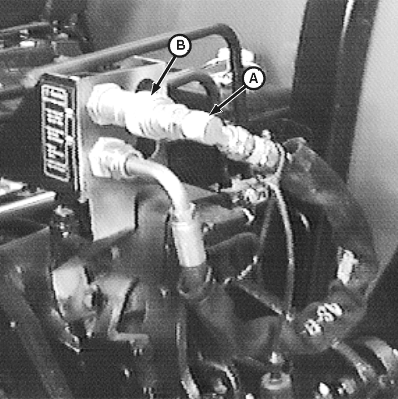

4500-4700 Tractors

1. Disconnect backhoe hydraulic pressure and return hoses from tractor Power Beyond quick-disconnect couplers.

2. Connect male quick-disconnect coupler on tractor pressure hose (A), to female quick-disconnect coupler on rockshaft input port (B).

A-Pressure Hose
B-Rockshaft Input Port

OUO1085,00002A0 -19-16NOV00-2/2
