Adjusting Operator's Seat

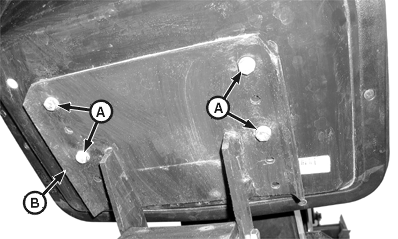

Front-to-Back Adjustment

1. Remove four 5/16 x 3/4 in. cap screws and lock washers (A) holding seat to seat plate (B).

2. Seat can be installed into one of four positions where holes line up. Use position that allows operator to reach controls easily. Tighten all hardware securely.


A-Lock Washer and Cap Screw (4 used)
B-Seat Plate

LV5595

OUO1085,00002A6 -19-16NOV00-1/2

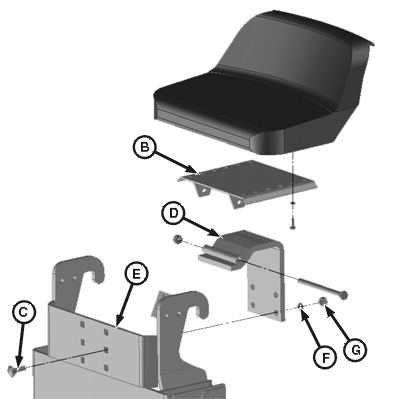

Height Adjustment (48 and 49 Backhoe)

1. Remove four carriage bolts (C), holding seat bracket (D) to adapter weldment (E).

2. Raise or lower seat bracket (D), lining up holes with mounting holes in adapter weldment (E). Install four carriage bolts (C), lock washers (F), and hex nuts (G).


C-Carriage Bolt (4 used)
D-Seat Bracket
E-Adapter Weldment
F-Lock Washer
G-Hex Nut

LV5596

Model 48 Backhoe on a Model 4500-4700 Tractor Series Shown

OUO1085,00002A6 -19-16NOV00-2/2
