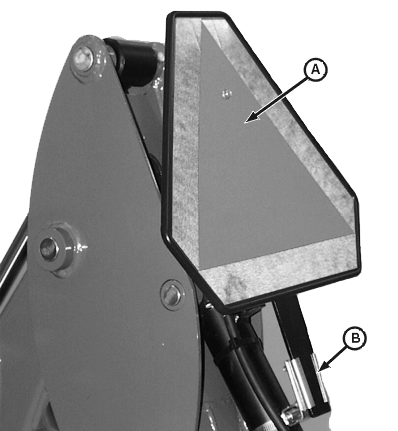

Slow Moving Vehicle (SMV) SignNOTE: On 4300-4700 tractors slow moving vehicle (SMV) sign located behind tractor operator seat is used. On 5105 and 5205, 5200-5500 and 5210-5510 tractors, SMV sign is provided with backhoe. 1. Install SMV sign (A) into bracket on the backhoe bucket cylinder (B), when transporting backhoe on roads and when trailering. Remove the SMV sign when digging, especially deep or narrow holes where the SMV sign could be thrown off or damaged.
|
|
OUO1085,00002A9 -19-16NOV00-1/1 |
