Removing Boom and Swing Lock Pins

1. Remove boom lock pin (A).

2. Remove swing lock pin (B).


A-Boom Lock Pin
B-Swing Lock Pin

LV5591
LV5592

OUO1085,00002AB -19-16NOV00-1/2

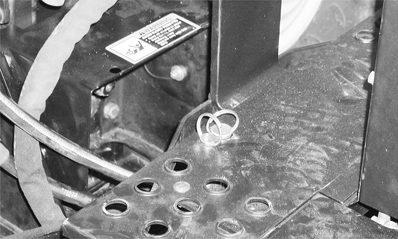

3. Store pins in storage holes on floor of operator's station while operating backhoe.

LV6033

OUO1085,00002AB -19-16NOV00-2/2
