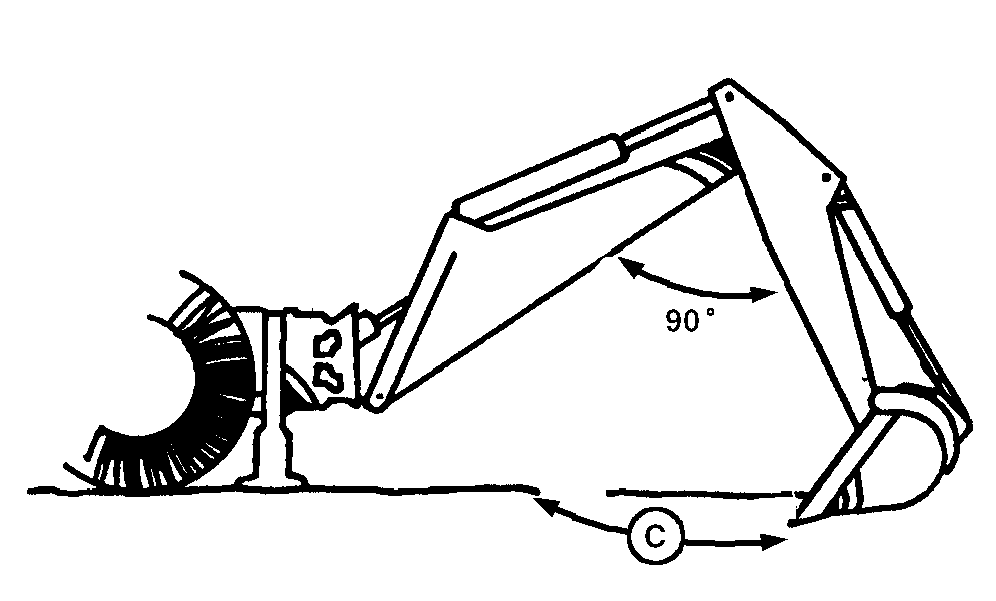

Digging Angle

1. Put dipperstick at correct angle to boom for digging, approximately 90 degrees.

2. Put bucket teeth in line with crowd angle (C).


C-Crowd Angle

LV5599

OUO1085,00002AD -19-16NOV00-1/1
