Lifting with Backhoe

causym CAUTION: IMPPROPER LIFTING MAY CAUSE CRUSHING, INJURY, OR DEATH. TO LIFT SAFELY:

FASTEN CHAINS TO OBJECT AND BACKHOE.

AVOID JERKING OR SWINGING BOOM.

KEEP PEOPLE AWAY.

DO NOT LET ANYONE UNDER OBJECT.

IMPORTANT: Do not use backhoe as towing vehicle. It is not designed for that purpose. Structural damage to backhoe, tractor, and attachment hardware could occur.

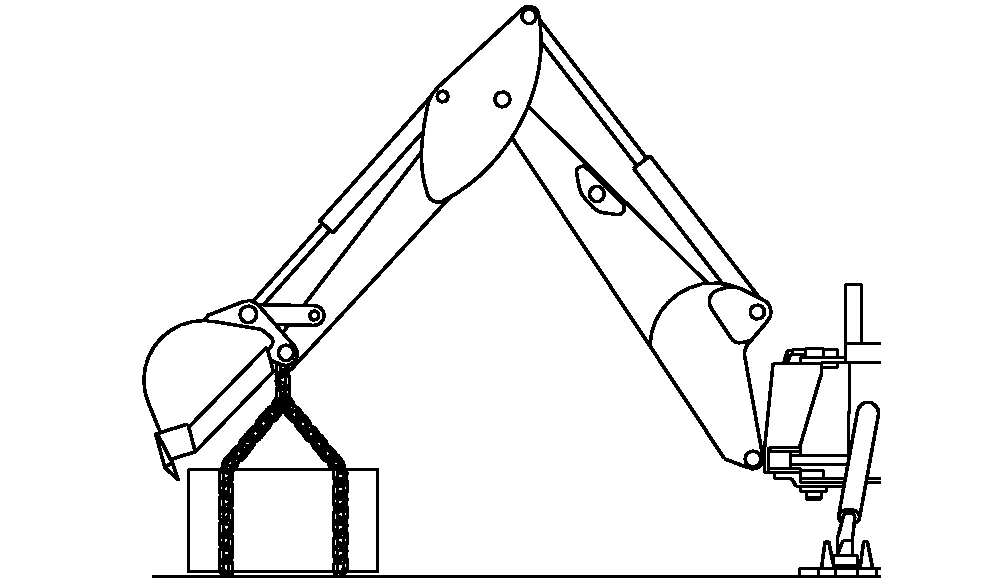

1. Extend boom and dipperstick cylinders until you can fasten chain to object.

2. Fasten chain to dipperstick approximately 50 mm (2 in.) above bucket pin.

3. Fasten chain to object.

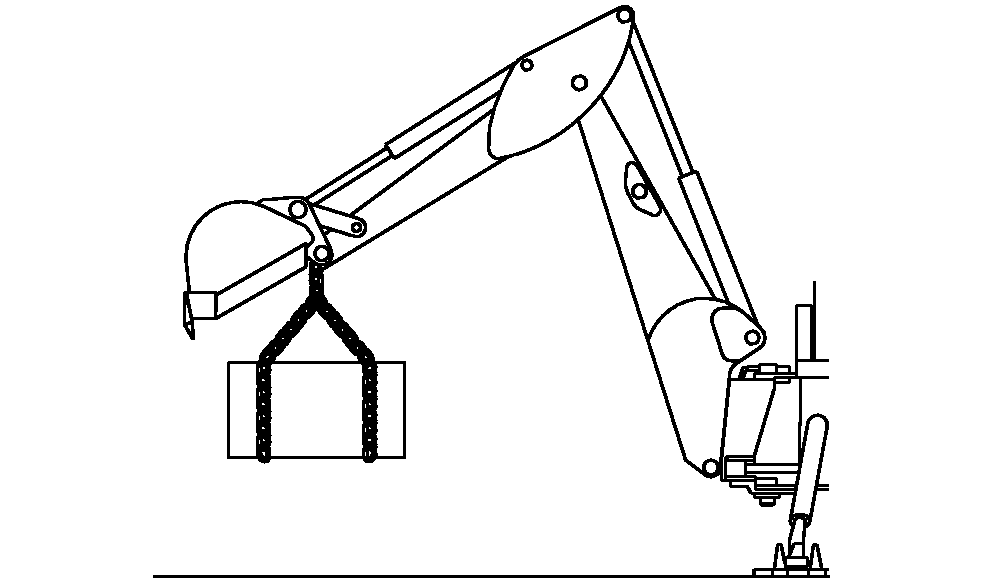

4. Raise boom to full height. Extend dipperstick cylinder if needed.

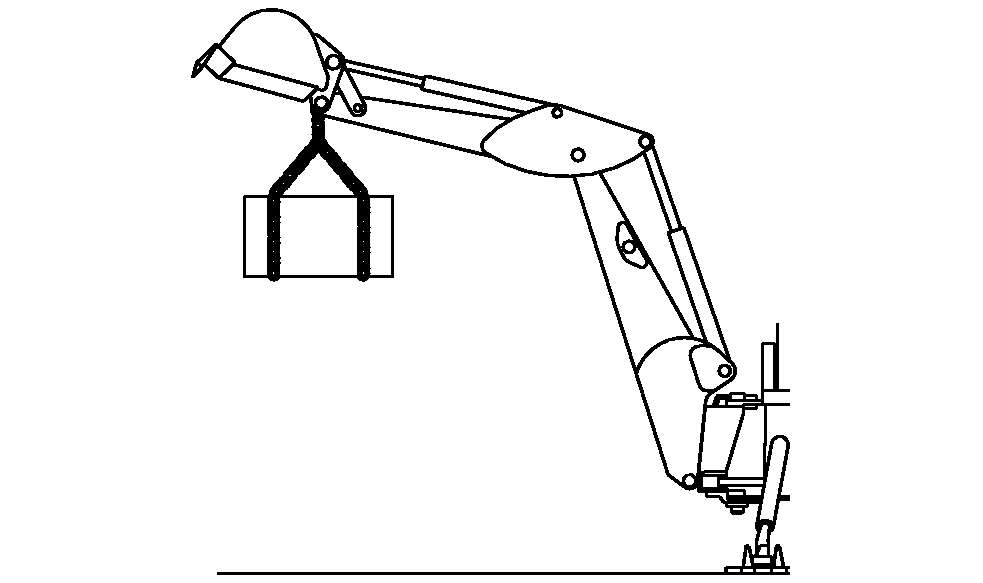

5. Retract dipperstick cylinder to lift load.
