CAUTION: BUCKET TEETH ARE HEAVY. WHEN YOU REMOVE THEM, THEY MAY PINCH FINGERS. WHERE GLOVES AND SAFETY GLASSES WHEN YOU REMOVE TEETH.
1. Remove tooth (A) from shank (B):
2. Clean the shank.
3. Install new tooth.
4. Peen area (E) on each side.

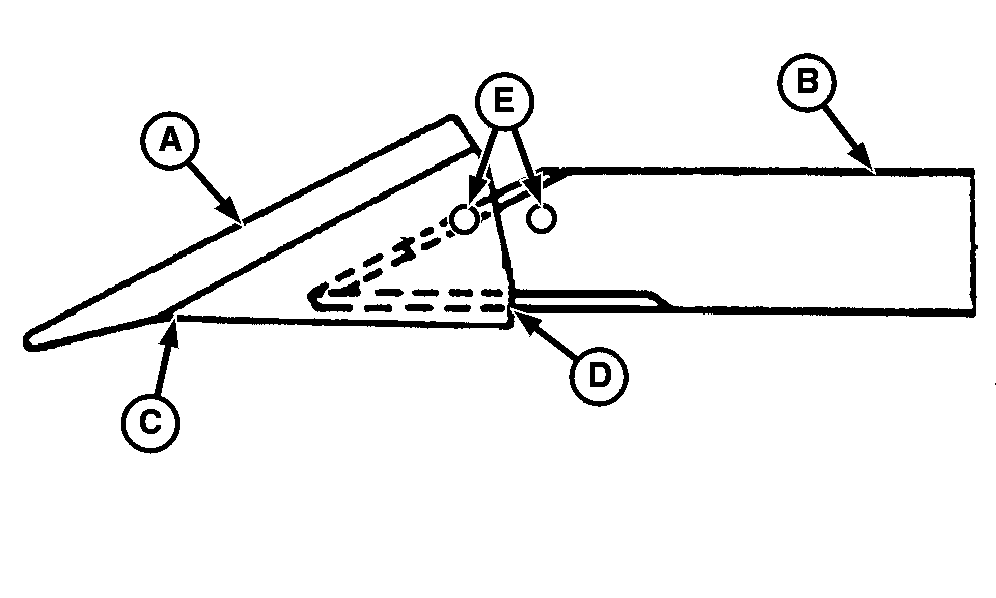

A-Tooth B-Shank C-Area to be Hammered D-Location of Chisel E-Area to be Peened
OUO1085,00002B8 -19-16NOV00-1/1
CAUTION:
BUCKET TEETH ARE HEAVY. WHEN YOU REMOVE THEM, THEY MAY PINCH FINGERS. WHERE GLOVES AND SAFETY GLASSES WHEN YOU REMOVE TEETH.
