Checking Tractor Hydraulic Fluid Level

2. Stop engine. Remove key. Lock park brake.

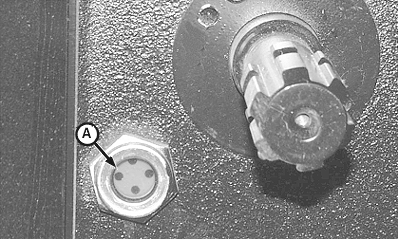

3. Check oil level in sight glass (A) on rear of transaxle. Add oil if needed. (See tractor operator's manual for fluid type.)

A-Sight Glass

OUO1085,00002B9 -19-16NOV00-1/4

2. Stop engine. Remove key. Lock park brake.

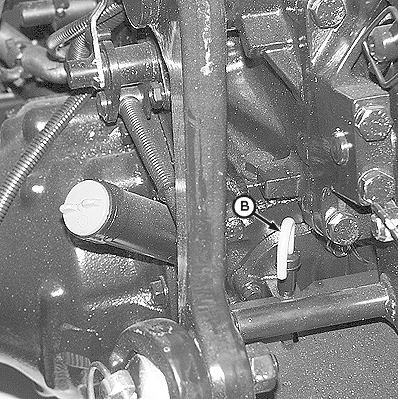

3. Check oil level using dipstick (B). Add oil if needed. (See tractor operator's manual for fluid type.)

B-Dipstick

OUO1085,00002B9 -19-16NOV00-2/4

2. Stop engine. Remove key. Lock park brake.

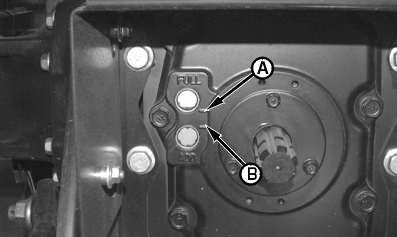

3. Check oil level in sight glass. Level should be to full mark (A). Add oil if needed. (See tractor operator's manual for fluid type.)

A-Full Mark
B-Low Mark

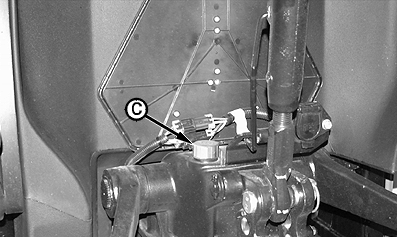

C-Hydraulic Oil Filler Port

OUO1085,00002B9 -19-16NOV00-3/4

2. Stop engine. Remove key. Lock park brake.

3. Check oil level using dipstick (A). Add oil if needed. (See tractor operator's manual for fluid type.)

A-Dipstick
