Lubricating Boom and Stabilizers
1.
Lubricate the following grease fittings with John Deere multipurpose grease or an equivalent. Use SAE-10 oil on pivot points with no grease fitting.
-
Dipperstick Cylinder Head End-Model 47 (A)
-
Swing Frame Upper Pivot Pin (B)
-
Boom Cylinder Rod End (C)
-
Boom Lower Pivot Pin (D)
-
Swing Cylinder Rod Ends (E)
-
Swing Frame Lower Pivot (F)
-
Stabilizer Leg Pivot Pins (G)

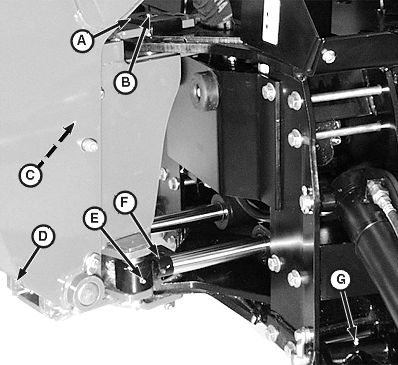

A-Dipperstick Cylinder Head End-Model 47
B-Swing Frame Upper Pivot Pin
C-Boom Cylinder Rod End
D-Boom Lower Pivot Pin
E-Swing Cylinder Rod End (2 used)
F-Swing Frame Lower Pivot
G-Stabilizer Leg Pivot Pin (2 used)
|
