Lubricating Bucket and Link Linkage
1.
Lubricate the following grease fittings with John Deere multipurpose grease or an equivalent. Use SAE-10 oil on pivot points with no grease fitting.
-
Bucket Cylinder Rod End (A)
-
Bucket Link Upper Pivots (B)
-
Bucket Link Dipperstick Pivot (C)
-
Bucket Link Dipperstick Pivot (D)
-
Bucket Link Lower Pivot(s) (E)

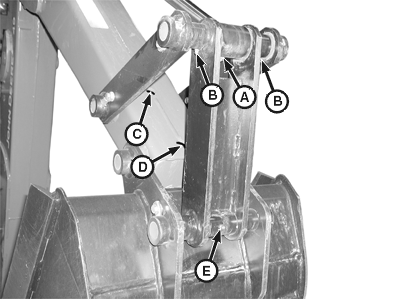

A-Bucket Cylinder Rod End
B-Bucket Link Upper Pivot (2 used)
C-Bucket Link Dipperstick Pivot
D-Bucket Pivot Dipperstick Pivot
E-Bucket Link Lower Pivot (2 used-Model 48) (1 used-Models 47 and 49)
|
