Lubricating Boom, Dipperstick Cylinders, and Dipperstick Pivot

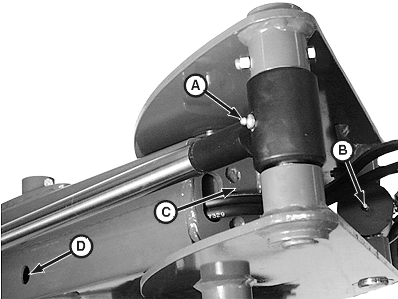

1. Lubricate the following grease fittings with John Deere multipurpose grease or an equivalent. Use SAE-10 oil on pivot points with no grease fitting.

• Dipperstick Cylinder Rod End (A)
• Bucket Cylinder Head End (B)
• Dipperstick Pivot (Under Hoses) (C)
• Boom Cylinder (Inside Boom) (D)

A-Dipperstick Cylinder Rod End
B-Bucket Cylinder Head End
C-Dipperstick Pivot (Under Hoses)
D-Boom Cylinder (Inside Boom)
