Removing 47 Backhoe from Pallet

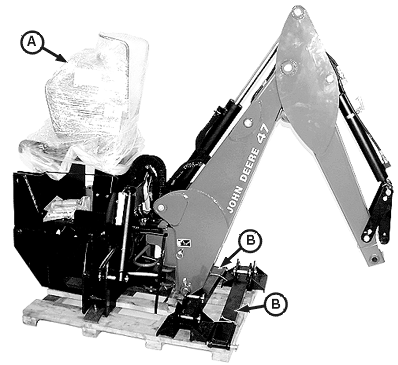

1. Place backhoe pallet on level ground in a position that allows tractor to back up to attachment hooks.

2. Remove plastic wrapping from backhoe seat (A).

3. Remove lag bolts and wires holding stabilizer legs (B) to pallet. Set stabilizer legs aside.

4. Remove plastic bag covering ends of hydraulic pressure and return hoses.


A-Backhoe Seat
B-Stabilizer Legs (2 used)

LV5621

OUO1085,00002C4 -19-17NOV00-1/2

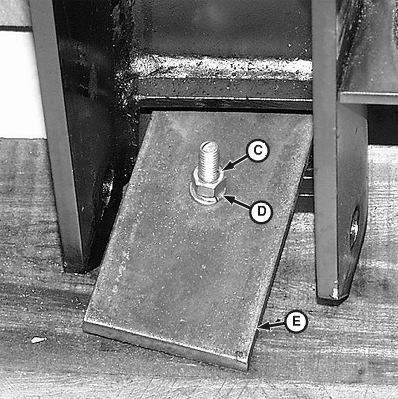

5. Remove nuts (C), washers (D), and shipping plates (E) from carriage bolts on both sides of pallet.


C-Nut (2 used)
D-Washer (2 used)
E-Shipping Plate (2 used)

LV5622

OUO1085,00002C4 -19-17NOV00-2/2
