OMM135891 E1: 47, 48, and 49 Backhoe for 4200—4700, 5105 and 5205, 5200—5500, 5210—5510 Tractors, Block File: OUO1085_00002C5_19

Assembling 47 Backhoe

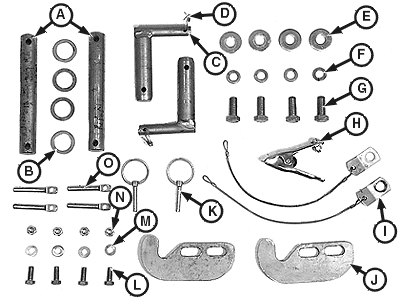

1. Remove bag of parts secured to operator's platform.

A-Bucket Pin (2 used)
B-Bucket Pin Washer (4 used)
C-L-Pin (2 used)
D-Retainer Ring (2 used)
E-Flat Washer, Movable Latch Plate, 1/2 in. (4 used)
F-Lock Washer, Movable Latch Plate, 1/2 in. (4 used)
G-Cap Screw, Movable Latch Plate, 1/2 in.) (4 used)
H-Spring Clamp, Screw, Washer, Hex Nut (2 used)
I-Retainer Cable, L-Pin (2 used)
J-Movable Latch Plate (2 used)
K-Hitch Pin (2 used)
L-Cap Screw, Bucket Pin Retainer (4 used)
M-Lock Washer, Bucket Pin Retainer (4 used)
N-Hex Nut, Bucket Pin Retainer (4 used)
O-Retainer, Bucket Pin (4 used)

OUO1085,00002C5 -19-17NOV00-1/4

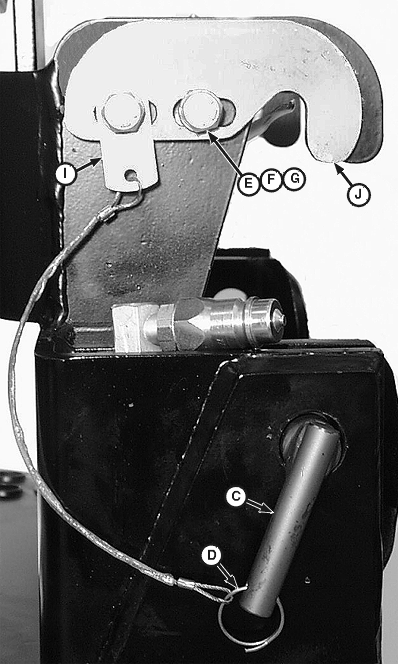

2. Install the movable latch plates (J) on the outside of each backhoe weldment hook using four 1/2 in. flat washers (E), lock washers (F), and cap screws (G). Install the L-pin retainer cable (I) under one of the cap screws, as shown. Center the slots on the movable latch plates before tightening cap screws.

3. Install retainer rings (D) onto L-pins (C). Attach retainer cable to retainer ring as shown.

NOTE: Photo shows L-pins installed into backhoe. Remove L-pins before attempting to attach to tractor.

C-L-Pin (2 used)
D-Retainer Ring (2 used)
E-1/2 in. Flat Washer (4 used)
F-Lock Washer (4 used)
G-Cap Screw (4 used)
I-L-Pin Retainer Cable (2 used)

OUO1085,00002C5 -19-17NOV00-2/4

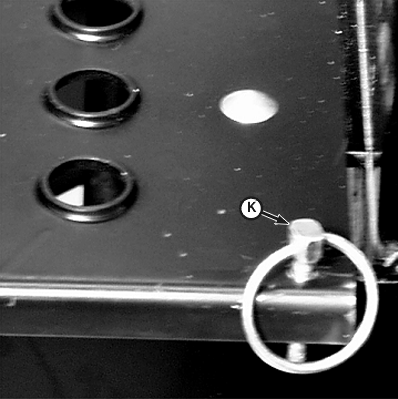

4. Install hitch pins (K) in storage location on backhoe operator platform.

K-Hitch Pin

OUO1085,00002C5 -19-17NOV00-3/4

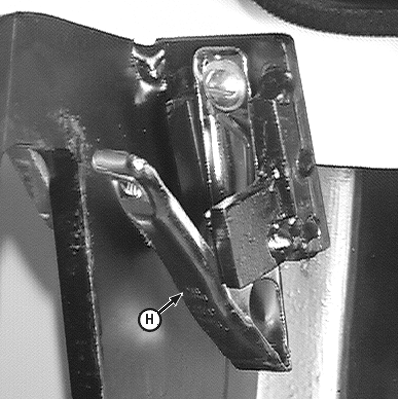

5. Install the spring clamp (H) to the backhoe operation left side weldment using the machine screw, lock washer, and nut provided.

H-Spring Clamp

OUO1085,00002C5 -19-17NOV00-4/4
