OMM135891 E1: 47, 48, and 49 Backhoe for 4200—4700, 5105 and 5205, 5200—5500, 5210—5510 Tractors, Block File: OUO1085_00002D1_19

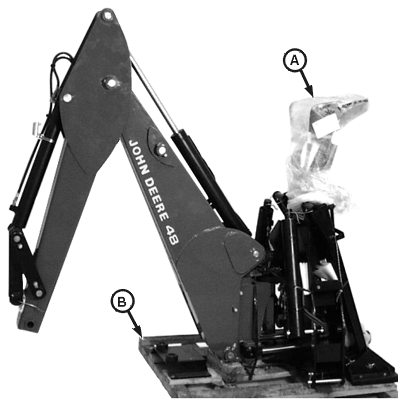

Disassembling Shipping Pallet (4300-4700 Tractors)

1. Place backhoe on level ground in a position that allows the tractor to back up to attachment hooks.

2. Remove plastic wrapping and shipping strap from operator's seat (A). Pull seat from shipping position and set aside for assembly.

3. Remove lag screws holding bumper plate (B) to pallet. Set aside bumper plate for assembly.

4. Remove plastic bag covering ends of hydraulic pressure and return hoses.

A-Operator's Seat
B-Bumper Plate

OUO1085,00002D1 -19-21NOV00-1/2

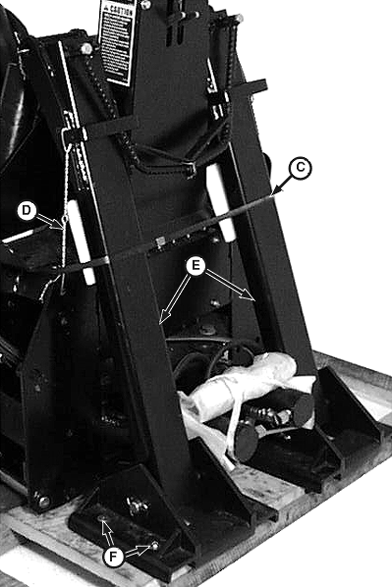

5. Remove lag screws (F), shipping straps (C), and wire ties (D) holding stabilizers (E) to pallet. Set stabilizers aside.

6. Backhoe may be left attached to pallet for stability until after it is attached to tractor. Pallet can then be dropped off of backhoe and discarded.

C-Shipping Strap
D-Wire Tie (2 used)
E-Stabilizer (2 used)
F-Lag Screw (4 used)

OUO1085,00002D1 -19-21NOV00-2/2
