Connecting Hydraulic Hoses (4300-4700 Tractors)

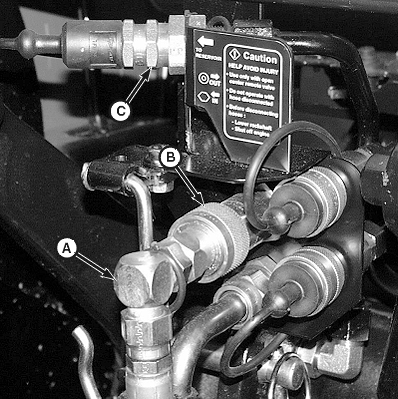

4300, 4400 Tractor

1. Disconnect rockshaft pressure hose (A) from Power Beyond pressure port (B) on tractor and lay pressure hose aside in backhoe frame.

2. Connect backhoe pressure hose male quick-disconnect coupler to Power Beyond pressure port (B) on tractor.

3. Connect backhoe return hose female quick-disconnect coupler to tractor return-to-tank male quick-disconnect coupler (C) on top of Power Beyond manifold.

A-Rockshaft Pressure Hose
B-Power Beyond Pressure Port
C-Male Quick-Disconnect Coupler

OUO1085,00002D5 -19-22NOV00-1/2

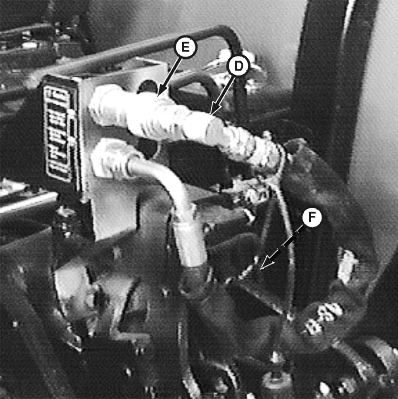

4500-4700 Tractor

1. Disconnect rockshaft pressure hose (D) from Power Beyond pressure port (E), and connect backhoe pressure hose male connector to Power Beyond pressure port (E) of tractor.

2. Connect backhoe return hose female quick-disconnect coupler to tractor return-to-tank fitting on side of rockshaft housing (F).

D-Rockshaft Pressure Hose
E-Power Beyond Pressure Port
F-Rockshaft Housing

OUO1085,00002D5 -19-22NOV00-2/2
