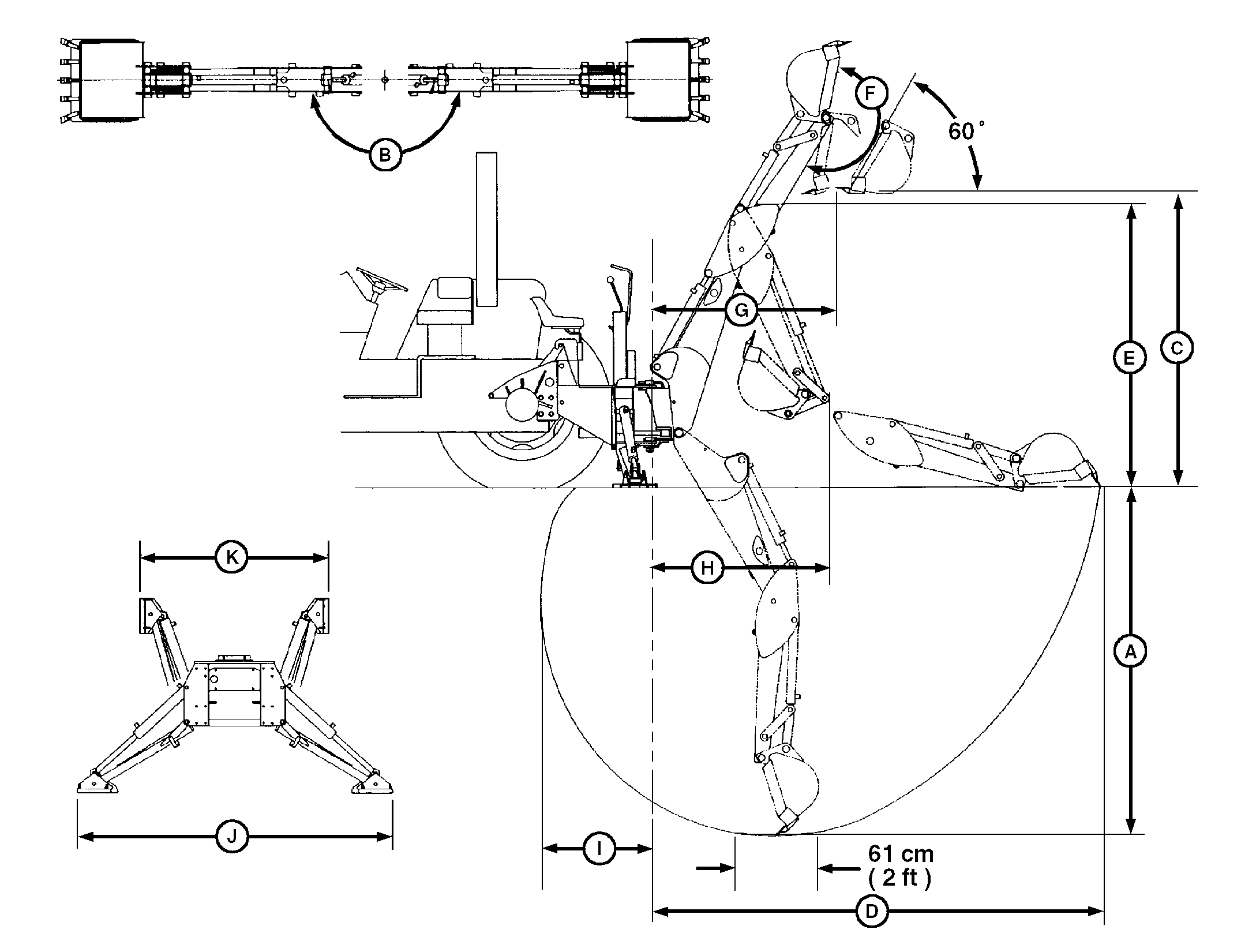

Dimensions

LV5659


A-Digging Depth
B-Swing Arc
C-Loading Height
D-Reach from Center Line of Swing Pivot


E-Transport Height
F-Bucket Rotation
G-Loading Reach


H-Transport Overhang
I-Undercut
J-Hydraulic Stabilizer Spread, Down


K-Hydraulic Stabilizer Spread, Up

OUO1085,00002DB -19-22NOV00-1/8

NOTE: 47 backhoe with boom pivot pin at 356 mm (14 in.) above groundline

48 backhoe with boom pivot pin at 406 mm (16 in.) above groundline

49 backhoe with boom pivot pin at 406 mm (16 in.) above groundline

Item Measurement Specification
47 Backhoe

A-Digging (610 mm (2 ft.) flat bottom)

Depth 2.3 m (7 ft. 6 in.)

B-Swing Arc

Angle 180°

C-Loading (Bucket at 60°)

Height 1.8 m (5 ft. 10 in.)

D-Reach from Center Line of Swing Pivot

Distance 2.9 m (9 ft. 6 in.)

E-Maximum Transport

Height 1.7 m (5 ft. 9 in.)

F-Bucket

Rotation 180°

G-Loading Reach (Bucket at 60°)

Distance 1.1 m (3 ft. 7 in.)

H-Transport Overhang

Length 1.1 m (3 ft. 6 in.)

I-Undercut

Length 760 mm (2 ft. 6 in.)

J-Hydraulic Stabilizer Spread (Down)

Width approx. 2.2 m (7 ft. 5 in.)

K-Hydraulic Stabilizer Spread (Up)

Width approx. 1.6 m (5 ft. 1 in.)

Boom 1

Lift 245 kg. (540 lbs)

SAE Dipperstick Digging

Force 8919 N (2005 lbs)

SAE Bucket Digging

Force 12 633 N (2840 lbs)

Backhoe Control Main Relief Valve Setting

Pressure 15 513 kPa (2250 psi)

1Dipper arm and boom extended, lifting with boom cylinder only, weight attached at bucket pivot, bucket pivot 914 mm (36 in.) off of ground.

OUO1085,00002DB -19-22NOV00-2/8

Item Measurement Specification
48 Backhoe

A-Digging (610 mm (2 ft.) flat bottom)

Depth 2.6 m (8 ft. 6 in.)

B-Swing Arc

Angle 180°

C-Loading (Bucket at 60°)

Height 2.1 m (6 ft. 10 in.)

D-Reach from Center Line of Swing Pivot

Distance 3.4 m (11 ft. 1 in.)

E-Maximum Transport

Height 2.1 m (6 ft. 9 in.)

F-Bucket

Rotation 180°

G-Loading Reach (Bucket at 60°)

Distance 1.1 m (3 ft. 7 in.)

H-Transport Overhang

Length 1.2 m (4 ft.)

I-Undercut

Length 864 mm (2 ft. 10 in.)

J-Hydraulic Stabilizer Spread (Down)

Width approx. 2.6 m (8 ft. 3 in.)

K-Hydraulic Stabilizer Spread (Up)

Width approx. 1.4 m (4 ft. 6 in.)

Boom 1

Lift 345 kg. (760 lbs)

SAE Dipperstick Digging

Force 10831 N (2435 lbs)

SAE Bucket Digging

Force 16592 N (3730 lbs)

Backhoe Control Main Relief Valve Setting

Pressure 17582 kPa (2550 psi)

1Dipper arm and boom extended, lifting with boom cylinder only, weight attached at bucket pivot, bucket pivot 914 mm (36 in.) off of ground.

OUO1085,00002DB -19-22NOV00-3/8

Item Measurement Specification
49 Backhoe

A-Digging (610 mm (2 ft.) flat bottom)

Depth 2.9 m (9 ft. 7 in.)

B-Swing Arc

Angle 180°

C-Loading (Bucket at 60°)

Height 2.3 m (7 ft. 8 in.)

D-Reach from Center Line of Swing Pivot

Distance 3.8 m (12 ft. 5 in.)

E-Maximum Transport

Height 2.4 m (7 ft. 10 in.)

F-Bucket

Rotation 180°

G-Loading Reach (Bucket at 60°)

Distance 1.5 m (4 ft. 11 in.)

H-Transport Overhang

Length 1.4 m (4 ft. 9 in.)

I-Undercut

Length 940 mm (3 ft. 1 in.)

J-Hydraulic Stabilizer Spread (Down)

Width approx. 2.9 m (9 ft. 8 in.)

K-Hydraulic Stabilizer Spread (Up)

Width approx. 1.6 m (5 ft. 2 in.)

Boom 1

Lift 447 kg. (985 lbs)

SAE Dipperstick Digging

Force 14 122 N (3175 lbs)

SAE Bucket Digging

Force 20 350 N (4575 lbs)

Backhoe Control Main Relief Valve Setting

Pressure 16 548 kPa (2400 psi)

1Dipper arm and boom extended, lifting with boom cylinder only, weight attached at bucket pivot, bucket pivot 914 mm (36 in.) off of ground.

OUO1085,00002DB -19-22NOV00-4/8

Model 47 Buckets
Item Measurement Specification
229 mm (9 in.) Bucket

SAE Struck

Capacity 0.014 m 3 (0.49 ft 3 )

Heaped

Capacity 0.018 m 3 (0.64 ft 3 )

Shipping

Weight 20.9 kg (46 lb)
330 mm (13 in.) Bucket

SAE Struck

Capacity 0.022 m 3 (0.77 ft 3 )

Heaped

Capacity 0.029 m 3 (1.04 ft 3 )

Shipping

Weight 23.6 kg (52 lb)
406 mm (16 in.) Bucket

SAE Struck

Capacity 0.028 m 3 (0.98 ft 3 )

Heaped

Capacity 0.038 m 3 (1.33 ft 3 )

Shipping

Weight 25.9 kg (57 lb)
508 mm (20 in.) Bucket

SAE Struck

Capacity 0.036 m 3 (1.26 ft 3 )

Heaped

Capacity 0.049 m 3 (1.74 ft 3 )

Shipping

Weight 29.5 kg (65 lb)
610 mm (24 in.) Bucket

SAE Struck

Capacity 0.044 m 3 (1.54 ft 3 )

Heaped

Capacity 0.061 m 3 (2.14 ft 3 )

Shipping

Weight 35.5 kg (78 lb)

OUO1085,00002DB -19-22NOV00-5/8

Item Measurement Specification
914 mm (36 in.) Bucket

SAE Struck

Capacity 0.067 m 3 (2.38 ft 3 )

Heaped

Capacity 0.095 m 3 (3.34 ft 3 )

Shipping

Weight 46.6 kg (102 lb)
Model 48 Buckets
Item Measurement Specification
305 mm (12 in.) Bucket

SAE Struck

Capacity 0.034 m 3 (1.20 ft 3 )

Heaped

Capacity 0.043 m 3 (1.53 ft 3 )

Shipping

Weight 37.3 kg (82 lb)
457 mm (18 in.) Bucket

SAE Struck

Capacity 0.052 m 3 (1.84 ft 3 )

Heaped

Capacity 0.070 m 3 (2.47 ft 3 )

Shipping

Weight 45.9 kg (101 lb)
610 mm (24 in.) Bucket

SAE Struck

Capacity 0.072 m 3 (2.53 ft 3 )

Heaped

Capacity 0.099 m 3 (3.48 ft 3 )

Shipping

Weight 53.2 kg (117 lb)
914 mm (36 in.) Bucket

SAE Struck

Capacity 0.111 m 3 (3.92 ft 3 )

Heaped

Capacity 0.156 m 3 (5.50 ft 3 )

Shipping

Weight 70 kg (154 lb)

OUO1085,00002DB -19-22NOV00-6/8

Model 49 Buckets
Item Measurement Specification
356 mm (14 in.) Bucket

SAE Struck

Capacity 0.032 m 3 (1.14 ft 3 )

Heaped

Capacity 0.049 m 3 (1.74 ft 3 )

Shipping

Weight 48.0 kg (106 lb)
457 mm (18 in.) Bucket

SAE Struck

Capacity 0.050 m 3 (1.75 ft 3 )

Heaped

Capacity 0.076 m 3 (2.68 ft 3 )

Shipping

Weight 57 kg (126 lb)
610 mm (24 in.) Bucket

SAE Struck

Capacity 0.069 m 3 (2.42 ft 3 )

Heaped

Capacity 0.105 m 3 (3.71 ft 3 )

Shipping

Weight 66 kg (146 lb)
914 mm (36 in.) Bucket

SAE Struck

Capacity 0.107 m 3 (3.77 ft 3 )

Heaped

Capacity 0.163 m 3 (5.76 ft 3 )

Shipping

Weight 88 kg (195 lb)
1016 mm (40 in.) Bucket

SAE Struck

Capacity 0.119 m 3 (4.19 ft 3 )

Heaped

Capacity 0.182 m 3 (6.41 ft 3 )

Shipping

Weight 94 kg (207 lb)

OUO1085,00002DB -19-22NOV00-7/8

Recommended Lubricants
  • Gear Oil
    • John Deere Low Viscosity HY-GARD ®
  • Grease
    • John Deere Moly High Temperature EP Grease
    • John Deere High Temperature Grease
    • John Deere Grease Gard™

NOTE: Specifications and design subject to change without notice.

HY-GARD is a trademark of Deere & Company

OUO1085,00002DB -19-22NOV00-8/8
