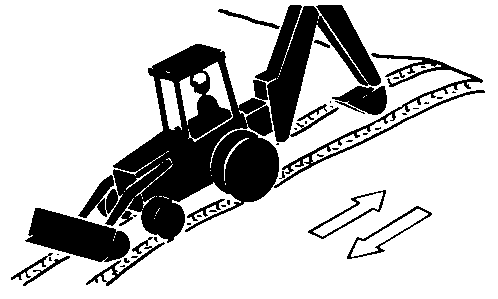

Drive Machine Safely

Set boom lock and swing lock pins to center backhoe before driving. If you must drive on steep hillsides, move the backhoe to uphill side for added stability.

Drive carefully:

  • on slopes
  • where room is limited
  • over rough ground, curbs, or tracks
  • near a ditch or excavation

For traveling:

  • be sure brake pedals are connected
  • lower loader bucket
  • keep machine in gear at all times

Use accessory lights and safety devices to warn operators of other vehicles.

Where flashing lights are prohibited, disconnect warning light flasher.

T7208AC

TX,05,DB2035 -19-07OCT96-1/1
