Parts in Kit

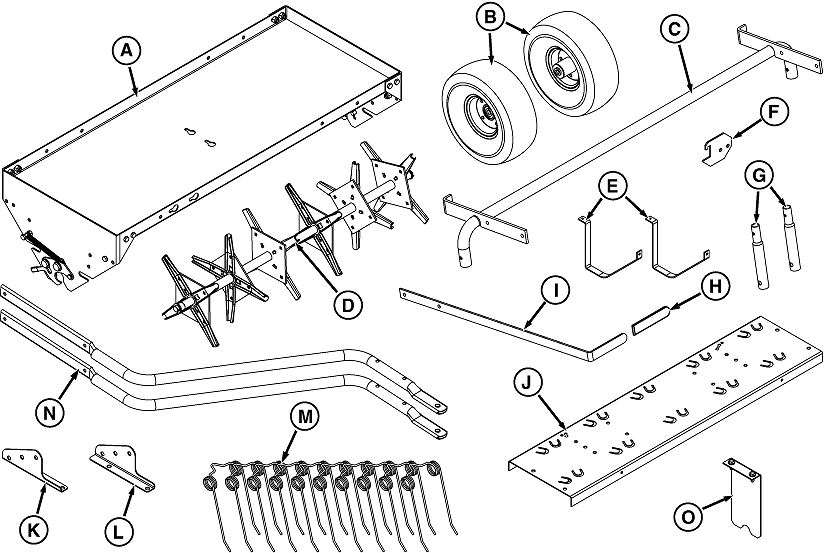

Main Assembly Parts

MXT008938-UN-14SEP13

Qty.	Description
1	Platform Assembly (A)
2	Wheels (B)
1	Lift Tube Assembly (C)
1	Aerator Attachment (D)
2	Skid Gauge (E)
1	Lift Handle Catch (F)
2	Lower Lift Tube (G)
1	Rubber Grip (H)
1	Transport Handle Bar (I)
1	Tine Spring Shield (J)
1	Right Hand Bracket (K)
1	Left Hand Bracket (L)
10	Spring Tine (M)
2	Hitch Tube (N)
1	Center Brace (O)

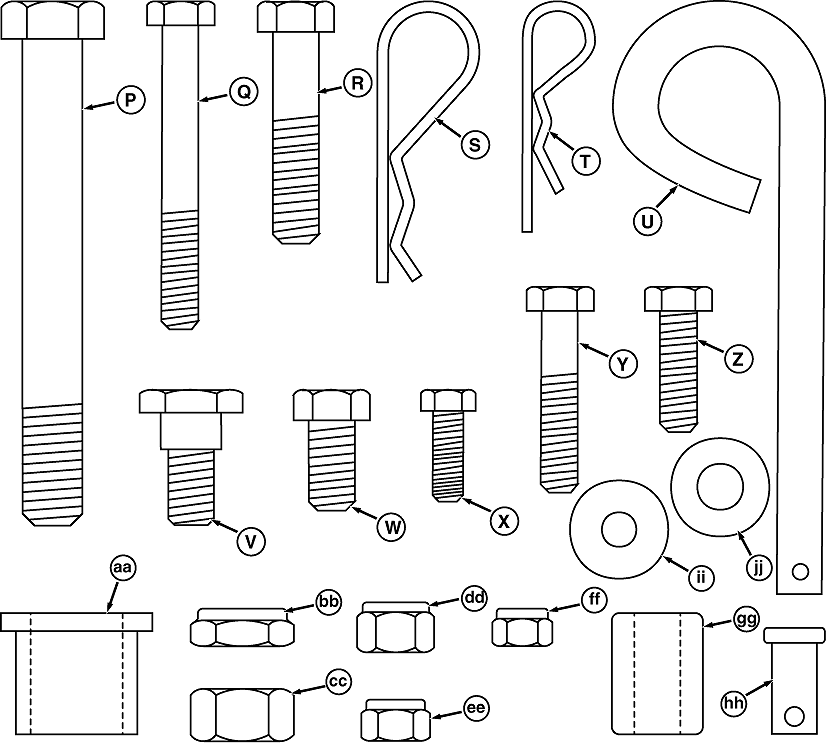

Bag of Parts

MXT008939-UN-14SEP13

Parts shown above are full size except items ii through oo in boxed area.

Qty.	Description
2	Bolt, 1/2 x 4 in. (P)
2	Bolt, 5/16 x 2-1/2 in. (Q)
2	Bolt, 3/8 x 1-3/4 in. (R)
1	Hair Cotter Pin, 3/32 x 2-5/16 in. (S)
2	Hair Cotter Pin, 0.08 x 1.58 in. (T)
1	Hitch Pin, 3/8 x 3 in. (U)
2	Shoulder Bolt, 3/8-16 x 0.9 in. (V)
4	Bolt, 3/8 x 3/4 in. (W)
4	Bolt, 1/4 x 3/4 in. (X)
4	Bolt, 5/16 x 1-1/2 in. (Y)
3	Bolt, 5/16 x 1 in. (Z)
2	Flange Bearing (aa)
2	Nylock Jam Nut, 1/2 in. (bb)
2	Jam Nut, 1/2 in. (cc)
8	Locknut, 3/8 in. (dd)
9	Locknut, 5/16 in. (ee)
4	Locknut, 1/4 in. (ff)
2	Spacer, 0.38 x 0.75 x 1 in. (gg)
2	Clevis Pin, 3/8 x 3/4 in. (hh)
4	Washer, 5/16 in. (ii)
2	Washer, 3/8 in. (jj)
