Installing Dethatcher

1.
   MXT008954-UN-14SEP13

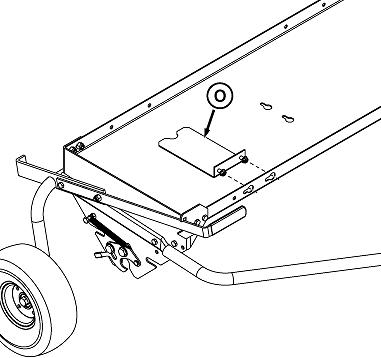

   Attach center brace (O) to the top of the platform. Do not tighten yet.

---




2.
   MXT008955-UN-14SEP13

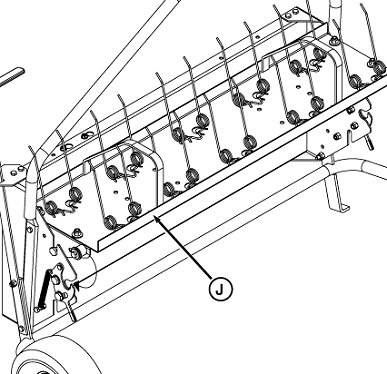

   With the platform standing on foot stands, slide the shoulder bolts on the dethatcher tine spring shield (J) down into the retainer slots.

---




3. Rotate the dethatcher until the bushings go into the axle retainers.

4.
   MXT008956-UN-14SEP13

   Secure each axle retainer to the platform assembly with a 3/8 x 3/4 in.clevis pin (hh) and 0.08 x 1.58 in. hair cotter pin (T).

---
