Installing Aerator

1.

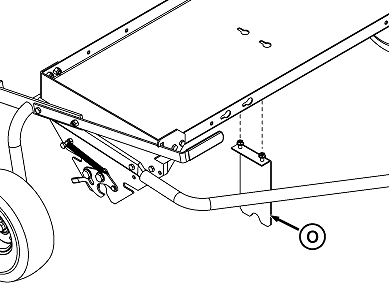

   MXT008957-UN-14SEP13

   Attach center brace (O) to the middle of the platform. Do not tighten yet.

---




2.

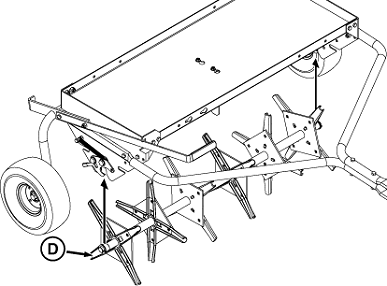

   MXT008958-UN-14SEP13

   Slide the bushings on each end of the aerator attachment (D) into the axle retainers one end at a time. Make sure the axle retainers snap into the lock position.

---




3.

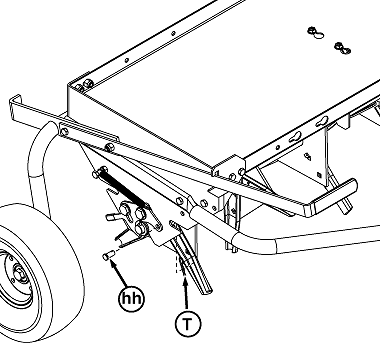

   MXT008956-UN-14SEP13

   Secure each axle retainer to the platform assembly with a 3/8 x 3/4 in. clevis pin (hh) and 0.08 x 1.58 in. hair cotter pin (T).

---
