Lifting Machine

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. CAUTION: Avoid injury! The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.

   • Lower machine onto jack stands or other stable supports and block wheels before servicing.

   NOTE: Remove all loads and attachments prior to lifting machine.

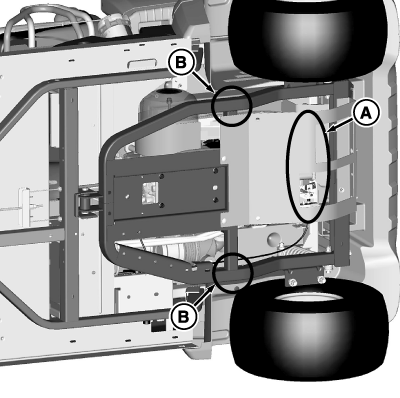

   MXT007307-UN-30MAY13

   Safely lift rear of machine against the skid plate at point (A).

---




3. Place jack stands or other stable supports under two frame locations (B).

4. If only lifting rear of machine, block front wheels remaining on ground to avoid movement of machine.

5.

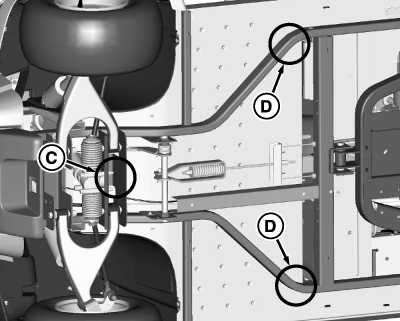

   MXT007308-UN-30MAY13

   Safely lift front of machine at machine frame point (C) or locations (D). Place jack stands or other stable supports under two machine frame locations (D).

---




6. If only lifting front of machine, block rear wheels remaining on ground to avoid movement of machine.

7. To lower machine, lift front and/or rear of machine, and remove jack stands or supports. Lower machine.
