Prevent Fires

• Besides routine maintenance, one of the best ways to keep your John Deere equipment running efficiently and to reduce fire risk is to regularly remove debris buildup from the machine.
• Please review these recommendations with all operators. See your John Deere dealer with questions.
• Always follow all safety procedures posted on the machine and in this operator manual. Before carrying out any inspection or cleaning, always shut off engine, lock parking brake and remove ignition key.
• After operating, allow machine to cool in an open area before cleaning or storing. Do not park machine near flammable materials such as wood, cloth or chemicals.
• Empty cargo box completely before storing.
• Frequency of these inspections and cleaning will vary depending on a number of factors including operating conditions, machine configuration, operating speeds and weather conditions particularly dry, hot and windy conditions. When you are operating in these conditions, inspect and clean these areas frequently throughout the day.
• Check engine bay frequently if the cargo box has being loaded with any material that could have spilled over the sides.
• Wind direction, terrain type and moisture content of surrounding vegetation can effect where and how much debris accumulates.
• Debris can accumulate anywhere on the machine, especially on horizontal surfaces.
• Keeping engine area clean will provide the greatest impact on fire prevention. Other areas requiring regular inspection and cleaning include under skid plates (if equipped), behind wheel rims, wire harness, hose/line routings, etc. Compressed air, leaf blowers or high pressured water can assist keeping these areas clean.
• Adding a windshield, canopy or other attachments can change air flow around the vehicle. Always check for debris buildup after adding attachments.
• Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

  1.

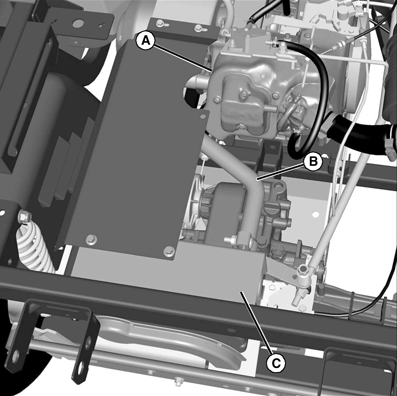

     MXAL44072-UN-27MAR13

     Exhaust manifold (A), muffler pipe (B), muffler, and muffler shield (C).

  2.

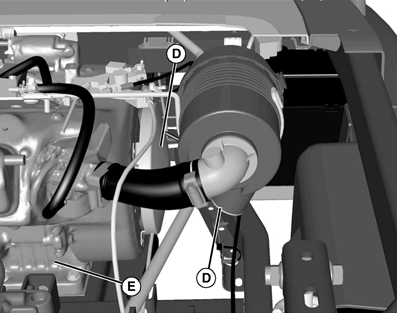

     MXAL44073-UN-27MAR13

     Engine intake screens (D), cooling fins (E) and oil cooler (if equipped).

  3.

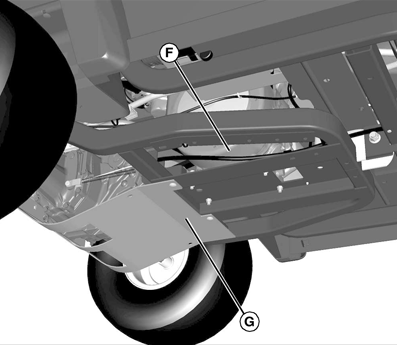

     MXAL44074-UN-27MAR13

     Between engine (F) and skid plates (G) (if equipped).

  4.

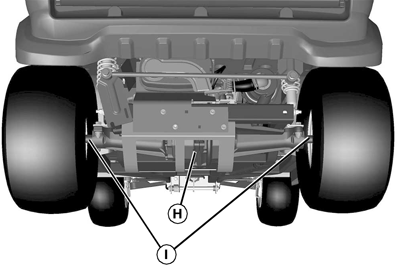

     MXAL44075-UN-27MAR13

     On or near transmission (H) and driveline (I).

  5.

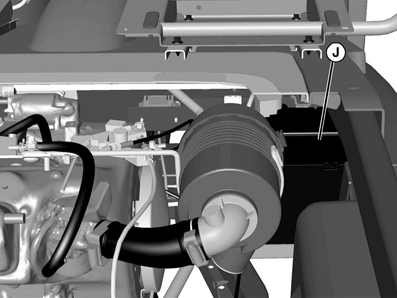

     MXAL44076-UN-27MAR13

     Battery (J) and related wiring harnesses.

• Excess lubrication or fuel/oil leaks or spills on the machine can also serve as collection sites for debris. Prompt machine repair and oil/fuel cleanup will minimize the potential for debris collection and reduced cooling throughout machine life.
• Bearing failures or overheating can result in a fire. To reduce this risk, always follow the instructions in the machine operator’s manual regarding lubrication intervals and locations. Washing the machine while warm may also reduce bearing life and increase potential for premature bearing failure.
• Always shut off fuel when storing or transporting machine, if the machine has a fuel shutoff.
