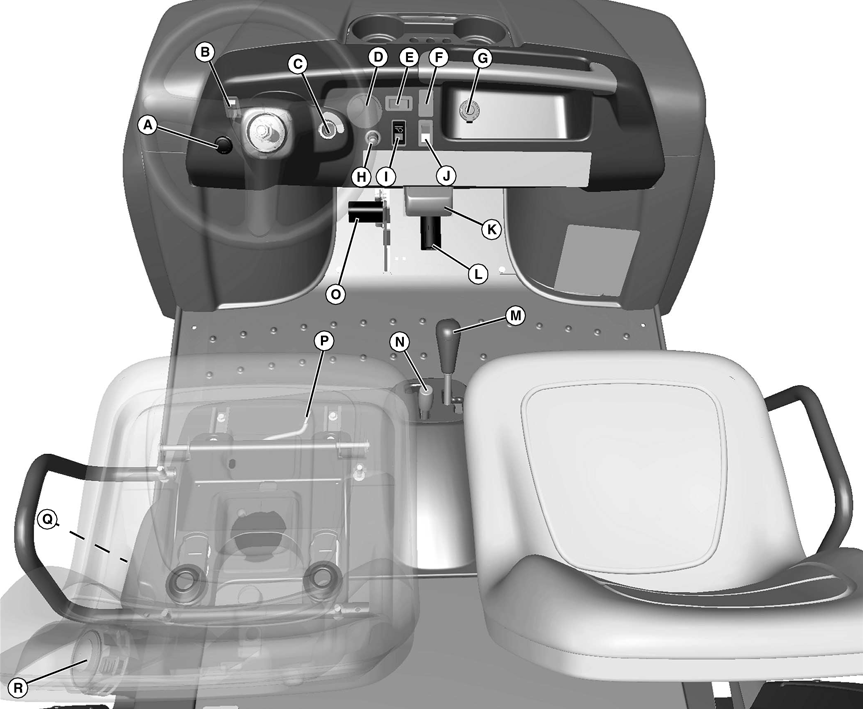

Operator Station Controls

MXAL44077-UN-27MAR13

Some controls may not be installed on your machine.

Key	Description	Key	Description
A	Choke Knob	J	Front Blade Lift/Lower Switch
B	Cargo Box Power Lift Switch	K	Park Brake Lock
C	Key Switch	L	Accelerator Pedal
D	Hour Meter	M	Gear Shift Lever
E	Turn Signal Switch	N	Traction Assist (Differential Lock) Lever
F	Hazard Lights Switch	O	Brake Pedal
G	12V DC Accessory Outlet	P	Lever, Seat Adjust
H	Horn Switch	Q	Fuel Level Sight Gauge
I	Headlight Switch	R	Fuel Tank Cap
