Operating the Tailgate


Opening Tailgate

CAUTION: Seating is provided for the operator and one passenger. Do not allow riders in the cargo box or on the tailgate. Extra riders can fall off and be seriously injured or killed.

MXAL44089
MXAL44089-UN-27MAR13

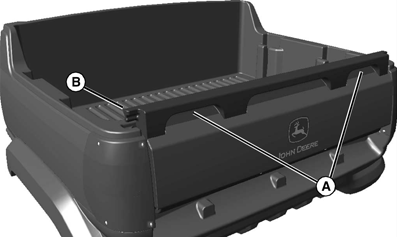

  1. Using handles (A), lift up on tailgate until tabs (B) clear the side rails.

  2. Pivot tailgate down until it rests on support cables.


Closing Tailgate

  1. Pivot tailgate up and lift the tailgate enough so that tabs clear side rails.

  2. Lower tailgate to engage tabs into side rail notches.

SP66632,000432E-19-20130328
