Emptying Cargo Box

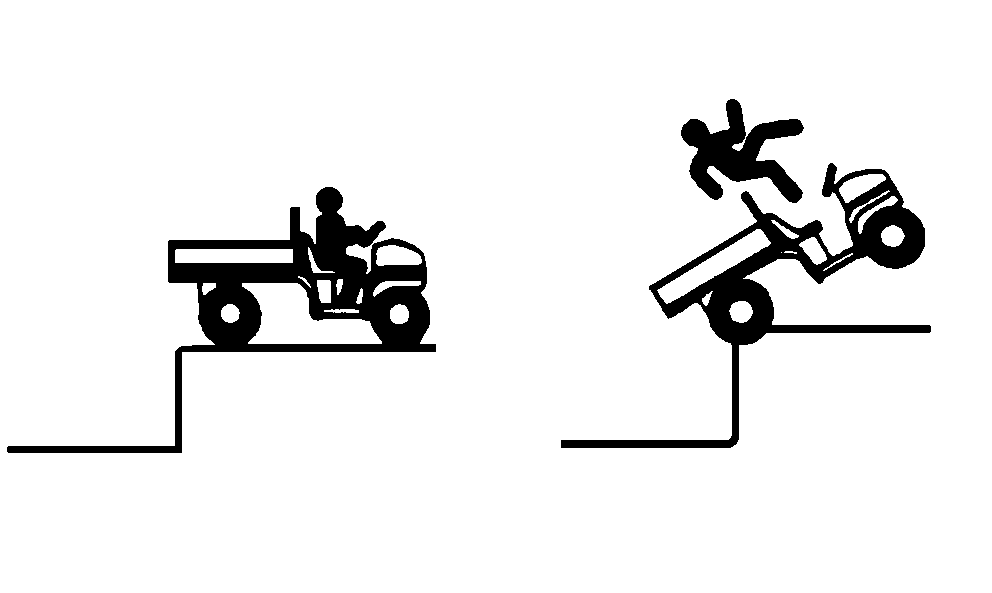

CAUTION: Raising a loaded cargo box changes the center of gravity. Keep vehicle a safe distance from the edge of ravine or drop-off when raising cargo box to empty.

A loaded cargo box can be very heavy. Do not attempt to manually raise a loaded cargo box. Unload cargo box before raising it by hand.

MXAL44093-UN-27MAR13

1. Back up vehicle to dump site.

2. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

3. Open tailgate.

4. IMPORTANT: Stop emptying immediately if actuator clutch slippage occurs. Lower cargo box completely and remove excess load by hand before dumping.

   Raise cargo box to dump load.

5. Lower cargo box when empty.

6. Close tailgate. Do not drive vehicle with cargo box in raised position.
