Transporting Vehicle

Towing the Machine

IMPORTANT: Never tow the vehicle. Towing a vehicle will result in transaxle damage. Haul the vehicle on a heavy-duty trailer or on a full-size truck.

Vehicle should be transported in the forward position. If the vehicle must be transported in a rearward position, the hood shall be strapped closed to prevent air from opening the hood during transport.

Windshield and canopy top must be removed when transporting the vehicle on a trailer or open truck. Damage to the windshield and canopy top may result if left on during transport. It is not necessary to remove the canopy frame when transporting.

NOTE: Space limitations may vary from one truck manufacturer to another. Short bed trucks do not have the necessary length requirement to accommodate the vehicle.

Machine Tie Down Locations

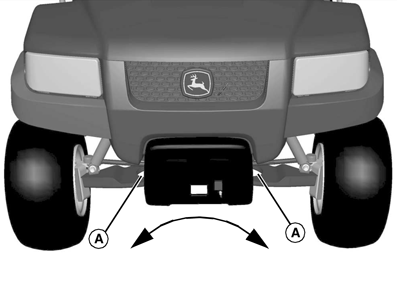

MXAL44095-UN-27MAR13

Fasten front of machine through tie down points (A) on front of machine to trailer with a heavy-duty strap, chain, or cable. Strap must be directed down and outward from machine.

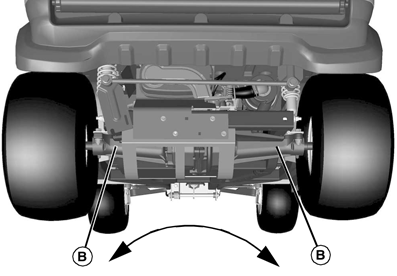

MXAL44096-UN-27MAR13

Fasten rear of machine through tie down points (B) on rear of machine to trailer with a heavy-duty strap, chain, or cable. Strap must be directed down and outward from machine.

Hauling the Machine

1. Drive vehicle forward onto the trailer or truck.

2. Leave gear shift lever in forward or reverse.

3. Park vehicle safely (See Parking Safely in the SAFETY section.)

4. Fasten vehicle to trailer or truck with straps, chains, or cables.

5. Equip the trailer or truck with all the necessary lights and signs required by local, state, provincial, or federal laws.
