Cleaning Rubber Dust Unloading Valve

IMPORTANT: Do not operate engine without air cleaner element and rubber dust unloading valve installed.

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

  2. Tip seats forward.

  3. Raise and secure cargo box.

  4. Remove engine access panel.

  5. MXAL44102
    MXAL44102-UN-27MAR13

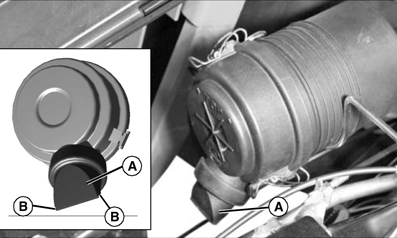

    The air cleaner canister cover is removed for clarity only. Removal of the canister cover or dust unloading valve is not required.

    Visually check dust unloading valve (A). Replace with new valve if worn, damaged, or missing.


  6. Pinch corners (B) toward each other to allow any dirt or debris to fall out of the valve.

  7. Install engine access panel.

  8. Lower the cargo box.

  9. Tip seats back.

SP66632,0004344-19-20130328
