Servicing Air Cleaner Element

IMPORTANT: Dirt and debris can enter engine when air cleaner canister is opened. Do not open canister unless required for scheduled service. This will keep contamination of the intake system to a minimum.

Check filter element more frequently if operating in dusty conditions.

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

  2. Let engine cool.

  3. Tip seats forward.

  4. Raise and secure cargo box.

  5. Remove engine access panel.

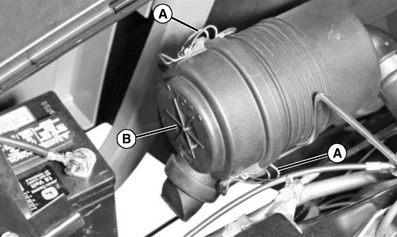

  6. MXAL44103
    MXAL44103-UN-27MAR13

    Release latches (A) and remove air cleaner canister cover (B).

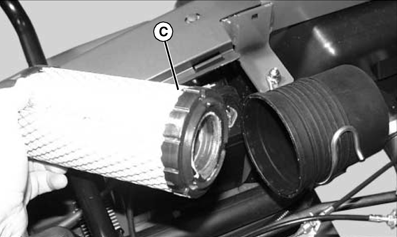

  7. MXAL44104
    MXAL44104-UN-27MAR13

    Remove and discard filter element (C). Replace with a new filter element.

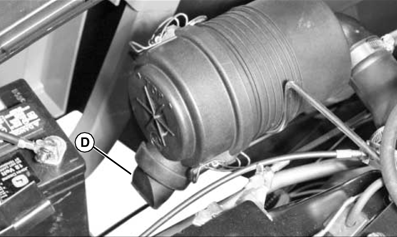

  8. MXAL44105
    MXAL44105-UN-27MAR13

    Install air cleaner canister cover with rubber dust unloading valve (D) pointing downward. Check instruction molded into canister cover for proper installation.


  9. Hook both canister cover latches.

  10. Install engine access panel.

  11. Lower the cargo box.

  12. Tip seats back.

SP66632,0004345-19-20130328
