Checking Air Intake Hoses and Clamps

1. Park the machine safely. (See Parking Safely in the SAFETY section.)

2. Let engine cool.

3. Tip seats forward.

4. Raise and secure cargo box.

5. Remove engine access panel.

6.
   MXAL44106-UN-27MAR13

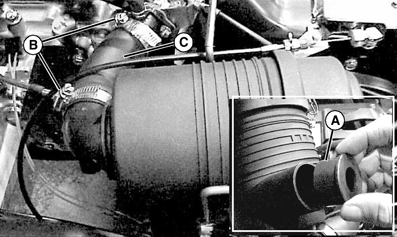

   Check restrictor (A) for damage or cracking. Replace if necessary.

---




7. NOTE: Ensure that the dust unloading valve is pointed downward.

   Check and tighten air intake hose clamps (B) if needed.

8. Check intake hose (C) for damage or cracking. Replace if necessary.

9. Install engine access panel.

10. Lower the cargo box.

11. Tip seats back.
