Replacing Drive Belt

CAUTION: Rotating parts can catch fingers, loose clothing, or long hair. Wait for engine and all moving parts to stop before leaving operator’s station to adjust or service machine.

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

  2. Tip seats forward.

  3. Raise and secure cargo box.

  4. Remove engine access panel.

  5. CAUTION: Touching hot surfaces can burn skin. The engine, components, and fluids will be hot if the engine has been running. Allow the engine to cool before servicing or working near the engine and components.

    MXAL44116
    MXAL44116-UN-27MAR13

    Remove the four cap screws (A) and belt guard (B).


  6. MXAL44117
    MXAL44117-UN-27MAR13

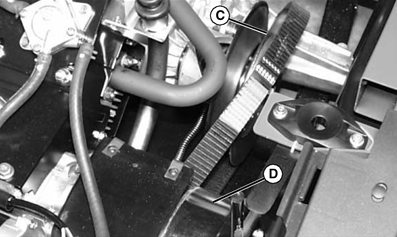

    Route the belt over pulley (C) of the driven clutch. Rotating the driven pulley will aid in removing the belt.


  7. Route belt over drive pulley (D) to remove.

  8. Install new belt by routing over drive pulley and then over the driven clutch pulley.

  9. Install belt guard and tighten cap screws to specification.

    ItemMeasurementSpecification
    Cap screwTorque14 N·m (124 lb-in.)

  10. Install engine access panel.

  11. Lower the cargo box.

  12. Tip seats back.

SP66632,000434F-19-20130328
