Replacing Headlight Bulb

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

  2. Open hood.

  3. MXAL44124
    MXAL44124-UN-27MAR13

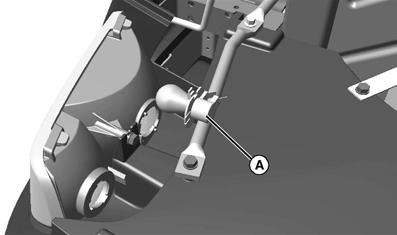

    Rotate bulb socket (A) 1/8 turn and remove socket from housing.


  4. Press inward and rotate the bulb 1/8 turn and pull outward to remove bulb from socket. Discard the bulb.

  5. Install bulb into socket by pushing inward and rotate the bulb 1/8 to lock bulb into place.

  6. Install the assembly into housing and rotate 1/8 turn to lock in place.

  7. Test head lamp function.

  8. Close hood and snap securely in place.
