Shock Adjustment

Preload Adjustment

NOTE: When adjusting the preload on the shock absorber springs, both front springs must be adjusted to the same setting, and both rear springs must be adjusted to the same setting.

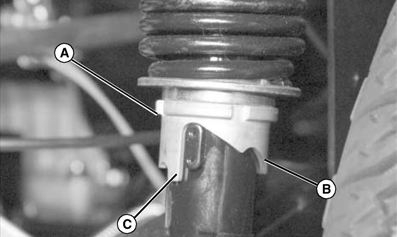

MXAL44129-UN-27MAR13

Adjust spring preload by turning adjusting cam accordingly with the adjusting wrench that comes with the vehicle.

Turn the adjusting cam (A) clockwise for a firmer ride (B) and rough terrain or when carrying cargo or pulling a trailer.

Turn the adjusting cams counterclockwise for a light load and a smooth terrain (C).

Adjusting cam position must be in same notch across an axle.
