Checking Traction Assist Cable Operation

1. Engage the traction assist.

2. Park the machine safely. (See Parking Safely in the SAFETY section.)

3. IMPORTANT: Improperly adjusted traction assist cables can cause transaxle damage.

   See your John Deere dealer if the cable needs to be adjusted.

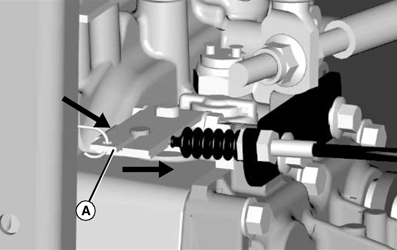

   MXAL44134-UN-27MAR13

   Located on back of machine.

   Inspect the traction assist lever (A) and try moving the lever toward the passenger side of the machine.
   • If the lever can not be moved toward the passenger side of the machine, the cable does not need adjustment.
   • If the lever can be moved, see your John Deere dealer.



---
