Operator Station Controls

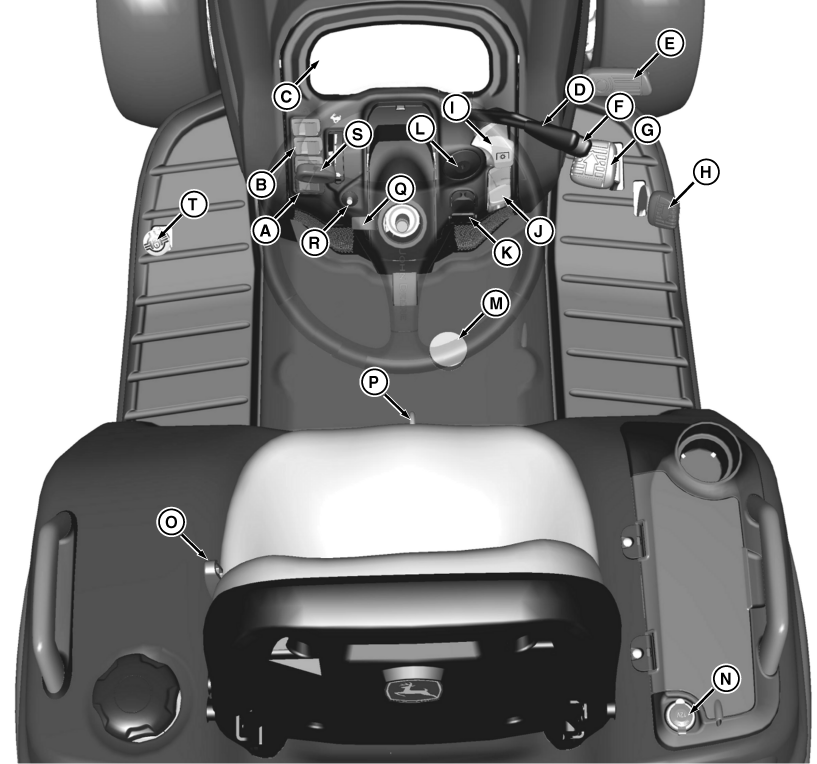

MXT007786-UN-25JUL13

A - Light Switch

B - 12V Accessory Outlet Switch

C - Instrument Panel (Gauges and Indicator Lights)

D - Hydraulic Control Lever, Upper

E - Brake Pedal

F - Hydraulic Control Lever, Lower

G - Forward Control Pedal

H - Reverse Control Pedal

I - PTO/RIO Switch

J - Park Brake Lock

K - Cruise Control Switch

L - Key Switch

M - Mower Height Control Knob

N - 12V Accessory Outlet

O - Seat Back Recline Handle

P - Seat Slide Lever

Q - Tilt Steering Lever

R - RIO Switch

S - Throttle Lever

T - Traction Assist Pedal
