Checking Fuel Filter Sediment Bowl

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Allow engine to cool.

3. Raise hood.

4. NOTE: Red ring in bottom of sediment bowl will float on water. If ring is floating, sediment bowl should be cleaned.


   MXAL41879-UN-18FEB13

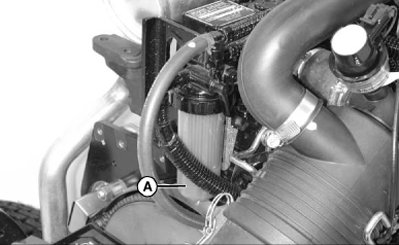

   Check for water and deposits in bottom of sediment bowl (A).

---




5. Clean sediment bowl and replace fuel filter if needed.

6. Lower hood.
