Checking Transaxle Oil Level (All Models)

1. IMPORTANT: Check oil level when transaxle is cold.

   NOTE: On models with Full Time 4-Wheel Drive (HFWD) front axle, make sure that machine is parked on level ground for accurate reading. Hydraulic fluid should be checked and added (if necessary) at the transaxle dipstick like other models, but fluid is shared between the HFWD axle and transaxle.

   Park machine safely. (See Parking Safely in the SAFETY Section.)

2. Slide seat fully forward.

3. IMPORTANT: Contamination of oil could cause transmission damage or failure. Clean area around dipstick before removing.


   MXAL41882-UN-18FEB13

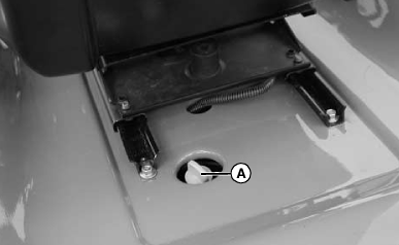

   Remove dipstick (A) and wipe it with a clean rag.

---




4. Install dipstick until it rests on top of fill tube. Do not tighten dipstick.

5. IMPORTANT: Do not overfill. Too much oil can cause oil leaks.

   Remove dipstick.

6. Check oil level on dipstick. Oil level should be between crosshatch marks on dipstick.

7. If oil is low, add John Deere Low Viscosity HY-GARD (J20D) transmission oil through dipstick fill opening to proper level.

8. Install and tighten dipstick.

9. Start and run engine a few minutes.

10. Stop engine and check oil level. Add oil as needed.

11. Return seat to operating position.
