Removing and Installing the Battery


Removing:

  1. Park machine safely. (See Parking Safely in the SAFETY Section.)

  2. Remove hood.

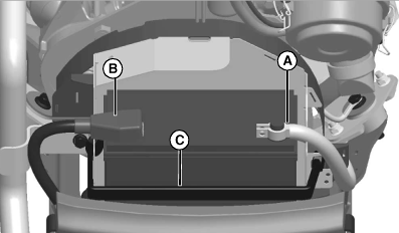

  3. MXAL41892
    MXAL41892-UN-18FEB13

    Disconnect negative (–) battery cable (A).


  4. Push red cover (B) away from positive (+) battery cable and remove cable from battery.

  5. Remove black rubber strap (C).

  6. Remove battery.


Installing:

  1. Place battery on battery tray.

  2. Connect positive (+) cable to positive (+) battery terminal first, then negative (-) cable to negative (-) battery terminal.

  3. Apply spray lubricant to terminals to prevent corrosion.

  4. Slide red cover over positive battery cable.

  5. Install black rubber strap.
