Replacing Fuses

Locate Fuses

MXAL41897-UN-18FEB13

MXAL41898-UN-18FEB13

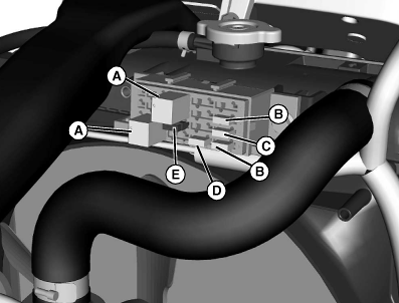

A - Relay (2)

B - Fuse - 20 amp (2)

C - Fuse - 10 amp

D - Fuse - 15 amp

E - Diode

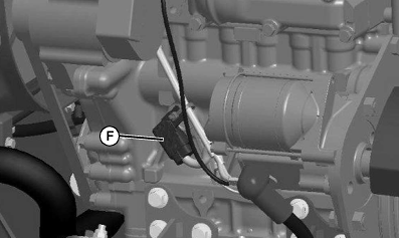

F - Master Fuse - 40 amp

Remove and Check Fuses

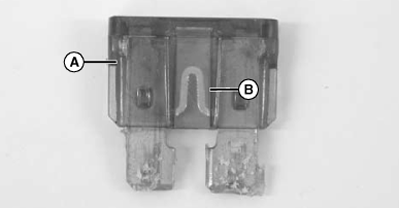

1. Pull fuse (A) from socket.

2.
   MXAL41899-UN-18FEB13

   Check metal clip (B) in fuse window. Discard fuse if clip is broken.

---




3. Install fuse.
