Removing and Installing Hood


Removing

  1. Raise hood.

  2. IMPORTANT: Disconnect headlight harness before removing hood.

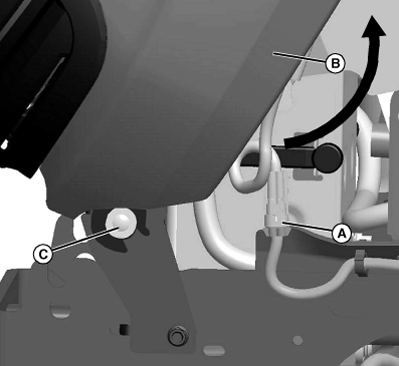

    MXAL41904
    MXAL41904-UN-18FEB13

    Disconnect headlight harness (A) on left side of machine.


  3. Pull hood (B) forward and lift off bushing (C).


Installing

  1. Position hood (B) upright.

  2. Install hood onto bushing (C).

  3. Connect headlight harness (A) on left side of machine.

  4. Lower hood.
