Using Mower Height Control Knob

MXAL41811-UN-18FEB13

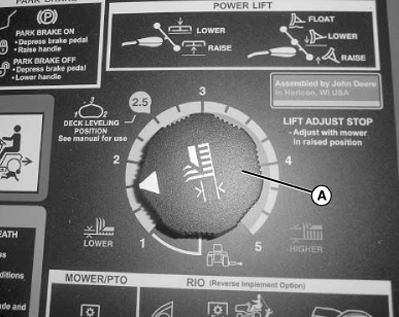

Use mower height control knob (A) to adjust mower cutting height, and lock mower deck lift arms in raised position. See your mower deck operator’s manual for instructions.

IMPORTANT: To avoid machine damage when operating without a mower deck, fully raise mower deck lift arms and turn mower height control knob clockwise to highest setting to lock lift arms in raised position.
