Using Fuel Shut-Off Valve

Close valve when performing engine service, during machine transport and during storage.

  1. Raise hood.

  2. MXAL41829
    MXAL41829-UN-18FEB13

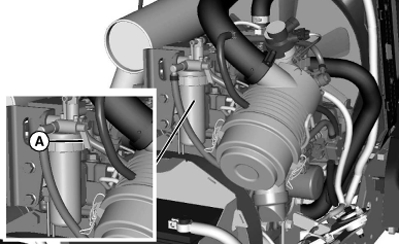

    Hood removed. Fuel shut-off valve shown in open position.

    Open or close fuel shut-off valve lever (A) as required:

    1. Open valve: Rotate valve lever to “O” (vertical) position.

    2. Close valve: Rotate valve lever to “C” (horizontal) position.
