Using Park Brake


Locking Park Brake

  1. CAUTION: Children or bystanders may attempt to move or operate an unattended machine.

    Always lock the park brake and remove the key before leaving the machine unattended.

    MXAL41830
    MXAL41830-UN-18FEB13

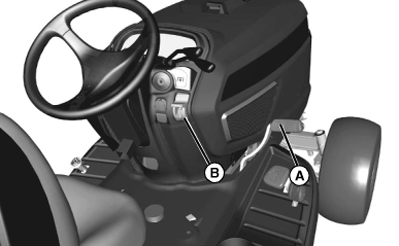

    Fully depress brake pedal (A).


  2. Pull park brake latch (B) up to lock park brake.

  3. Release brake pedal and then park brake latch. Pedal should stay down and park brake latch should stay up in locked position.


Unlocking Park Brake

  1. Fully depress brake pedal.

  2. Push park brake latch down.

  3. Release brake pedal. Pedal should come up to operating position.
